XC6194AA10ER-G
ActiveTorex Semiconductor Ltd
PUSH BUTTON SMART LOAD SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
XC6194AA10ER-G
ActiveTorex Semiconductor Ltd
PUSH BUTTON SMART LOAD SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XC6194AA10ER-G |
|---|---|
| Current - Output (Max) [Max] | 1 A |
| Fault Protection | Over Temperature, Current Limiting (Fixed) |
| Features | Power Good, Status Flag, Slew Rate Controlled |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Package / Case | 8-XFDFN Exposed Pad |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 190 mOhm |

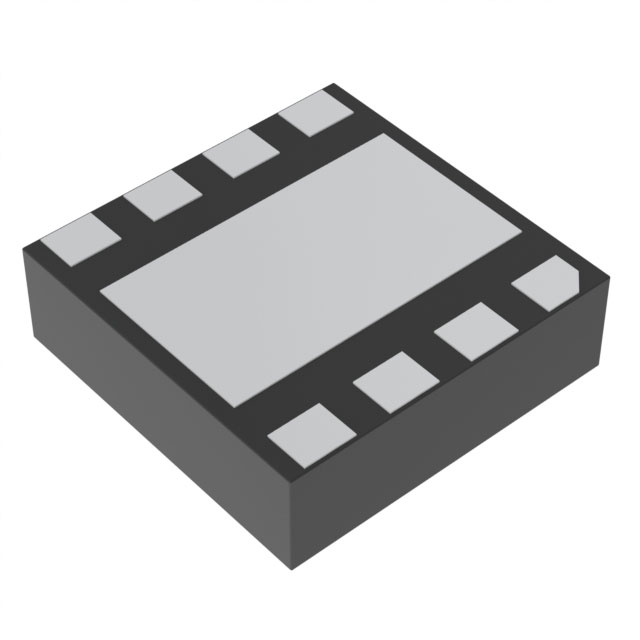

| Supplier Device Package | 8-USP-B06 (2x2) |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 6 V |
| Voltage - Load [Min] | 1.8 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.36 | |
| 10 | $ 0.85 | |||
| 25 | $ 0.72 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.41 | |||
| 2500 | $ 0.37 | |||
| Digi-Reel® | 1 | $ 1.36 | ||
| 10 | $ 0.85 | |||
| 25 | $ 0.72 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.41 | |||
| 2500 | $ 0.37 | |||
| Tape & Reel (TR) | 5000 | $ 0.35 | ||
| 10000 | $ 0.33 | |||
| 15000 | $ 0.31 | |||
| 25000 | $ 0.30 | |||
Description
General part information
XC6194 Series
Power Switch/Driver 1:1 1A 8-USP-B06 (2x2)
Documents
Technical documentation and resources
No documents available
