N25Q256A83E1241F

Obsolete

Micron Technology Inc.

NOR FLASH SERIAL-SPI 3.3V 256MBIT 256M/128M/64M X 1BIT/2BIT/4BIT 7NS/8NS 24-PIN TPBGA T/R

Search across all available documentation for this part.

Obsolete

Micron Technology Inc.

NOR FLASH SERIAL-SPI 3.3V 256MBIT 256M/128M/64M X 1BIT/2BIT/4BIT 7NS/8NS 24-PIN TPBGA T/R

Technical Specifications

Parameters and characteristics for this part

Specification	N25Q256A83E1241F

Clock Frequency	108 MHz
Memory Format	FLASH
Memory Interface	SPI
Memory Organization	64 M
Memory Size	256 Gbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

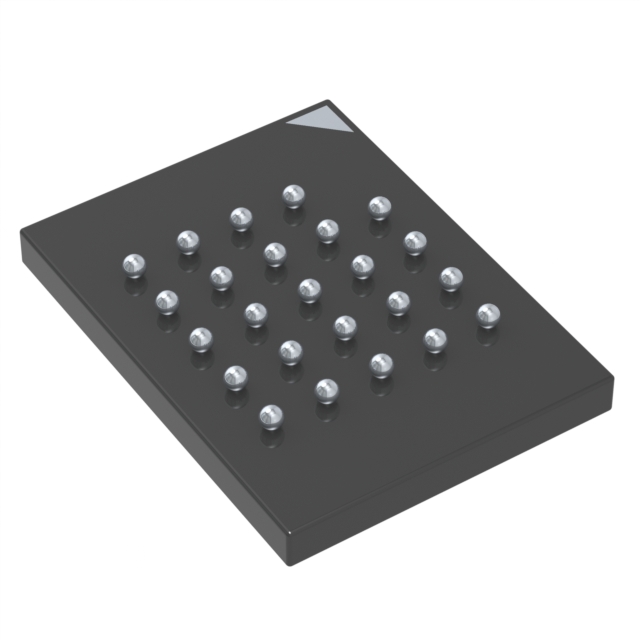

Package / Case	24-TBGA
Supplier Device Package	24-T-PBGA (6x8)
Technology	FLASH - NOR
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V
Write Cycle Time - Word, Page [custom]	5 ms
Write Cycle Time - Word, Page [custom]	8 ms

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Clock Frequency	Memory Size	Memory Organization	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Memory Format	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Mounting Type	Memory Interface	Technology	Package / Case [x]	Package / Case	Package / Case [y]	Supplier Device Package
Micron Technology Inc. N25Q256A83ESF40F TR	2.7 V	3.6 V	108 MHz	256 Gbit	64 M	85 °C	-40 °C	Non-Volatile	FLASH	5 ms	8 ms	Surface Mount	SPI	FLASH - NOR	0.295 in	16-SOIC	7.5 mm	16-SOP2
Micron Technology Inc. N25Q256A83E1240E	2.7 V	3.6 V	108 MHz	256 Gbit	64 M	85 °C	-40 °C	Non-Volatile	FLASH	5 ms	8 ms	Surface Mount	SPI	FLASH - NOR		24-TBGA		24-T-PBGA (6x8)
Micron Technology Inc. N25Q256A83ESF40G	2.7 V	3.6 V	108 MHz	256 Gbit	64 M	85 °C	-40 °C	Non-Volatile	FLASH	5 ms	8 ms	Surface Mount	SPI	FLASH - NOR	0.295 in	16-SOIC	7.5 mm	16-SOP2
Micron Technology Inc. N25Q256A83E1241F	2.7 V	3.6 V	108 MHz	256 Gbit	64 M	85 °C	-40 °C	Non-Volatile	FLASH	5 ms	8 ms	Surface Mount	SPI	FLASH - NOR		24-TBGA		24-T-PBGA (6x8)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SPI-compatible serial bus interface

Double transfer rate (DTR) mode

1.7-2.0V single supply voltage
