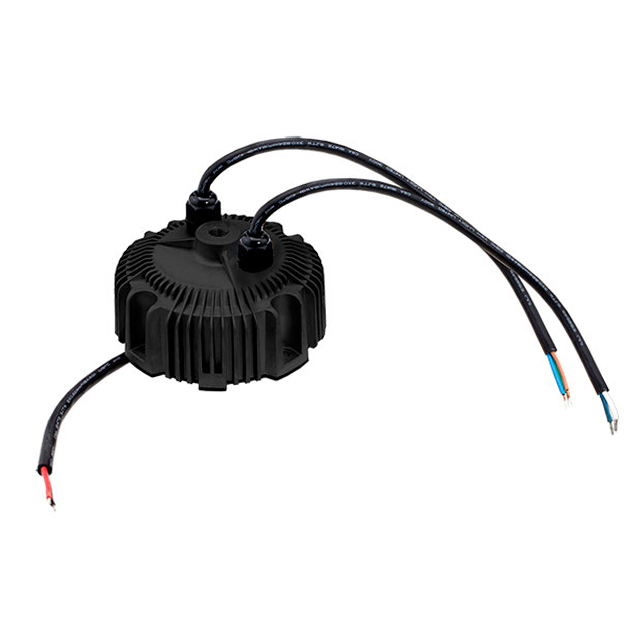

HBG-100-36B

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 21.6-36V 2.7A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HBG-100-36B

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 21.6-36V 2.7A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HBG-100-36B

Approval Agency	cURus, CE, ENEC, CB, CCC
Current - Output (Max) [Max]	2.7 A
Dimming	Analog, PWM
Efficiency	91 %
Features	OVP, OCP, OTP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	97 W
Ratings	IP67
Size / Dimension [diameter]	130 mm
Size / Dimension [diameter]	5.12 in
Size / Dimension [z]	66.5 mm
Size / Dimension [z]	2.62 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	36 V
Voltage - Output [Min]	21.6 V

HBG-100 Series

Part	Voltage - Output [Min]	Voltage - Output [Max]	Number of Outputs	Approval Agency	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Isolation	Mounting Type	Features	Voltage - Input (Max) [Max]	Type	Topology	Termination Style	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Dimming	Standard Number
MEAN WELL USA Inc. HBG-100P-36A	21.6 V	36 V	1	CB CCC CE cURus ENEC	104 mm	4.09 in	1.34 in	34 mm	3750 V	Chassis Mount	OTP OVP SCP	305 VAC	Constant Current	AC DC Converter	Wire Leads	91 %	2.7 A	90 VAC	97 W
MEAN WELL USA Inc. HBG-100-48	28.8 V	48 V	1	CB CCC CE cURus ENEC	130 mm	5.12 in	2.62 in	66.5 mm	3750 V	Chassis Mount	OCP OTP OVP	305 VAC	Constant Current	AC DC Converter	Wire Leads	91 %	2 A	90 VAC	96 W	85 °C	-40 °C	IP67
MEAN WELL USA Inc. HBG-100P-60A	36 V	60 VDC	1	CB CCC CE cURus ENEC	104 mm	4.09 in	1.34 in	34 mm	3750 V	Chassis Mount	OTP OVP SCP	305 VAC	Constant Current	AC DC Converter	Wire Leads	91.5 %	1.6 A	90 VAC	96 W
MEAN WELL USA Inc. HBG-100P-60B	36 V	60 VDC	1	CB CCC CE cURus ENEC	104 mm	4.09 in	1.34 in	34 mm	3750 V	Chassis Mount	OTP OVP SCP	305 VAC	Constant Current	AC DC Converter	Wire Leads	91.5 %	1.6 A	90 VAC	96 W				Analog PWM
MEAN WELL USA Inc. HBG-100-60A	36 V	60 VDC	1	CB CCC CE cURus ENEC	130 mm	5.12 in	2.62 in	66.5 mm	3750 V	Chassis Mount	OCP OTP OVP	305 VAC	Constant Current	AC DC Converter	Wire Leads	91.5 %	1.6 A	90 VAC	96 W	85 °C	-40 °C	IP65
MEAN WELL USA Inc. HBG-100-48AB	28.8 V	48 V	1	CB CCC CE cURus EAC ENEC	130 mm	5.12 in	2.62 in	66.5 mm	3750 V	Chassis Mount	OCP OTP OVP	305 VAC	Constant Current	AC DC Converter	Wire Leads	91 %	2 A	90 VAC	96 W	85 °C	-40 °C	IP65	Analog PWM	UL 8750
MEAN WELL USA Inc. HBG-100-60DA	36 V	60 VDC	1	CB CCC CE cURus EAC ENEC	130 mm	5.12 in	2.62 in	66.5 mm	3750 V	Chassis Mount	OCP OTP OVP	305 VAC	Constant Current	AC DC Converter	Wire Leads	91.5 %	1.6 A	90 VAC	96 W	85 °C	-40 °C	IP67	Analog PWM	UL 8750
MEAN WELL USA Inc. HBG-100P-48A	28.8 V	48 V	1	CB CCC CE cURus ENEC	104 mm	4.09 in	1.34 in	34 mm	3750 V	Chassis Mount	OTP OVP SCP	305 VAC	Constant Current	AC DC Converter	Wire Leads	91 %	2 A	90 VAC	96 W
MEAN WELL USA Inc. HBG-100-36B	21.6 V	36 V	1	CB CCC CE cURus ENEC	130 mm	5.12 in	2.62 in	66.5 mm	3750 V	Chassis Mount	OCP OTP OVP	305 VAC	Constant Current	AC DC Converter	Wire Leads	91 %	2.7 A	90 VAC	97 W	85 °C	-40 °C	IP67	Analog PWM
MEAN WELL USA Inc. HBG-100-24	14.4 V	24 V	1	CB CCC CE cURus ENEC	130 mm	5.12 in	2.62 in	66.5 mm	3750 V	Chassis Mount	OCP OTP OVP	305 VAC	Constant Current	AC DC Converter	Wire Leads	90.5 %	4 A	90 VAC	96 W	85 °C	-40 °C	IP67

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 51.70
		5	$ 47.93
		10	$ 46.40
		25	$ 44.44

Description

General part information

HBG-100 Series

2.7A 21.6 ~ 36V Constant Current LED Driver AC DC Converter Topology 1 Output
