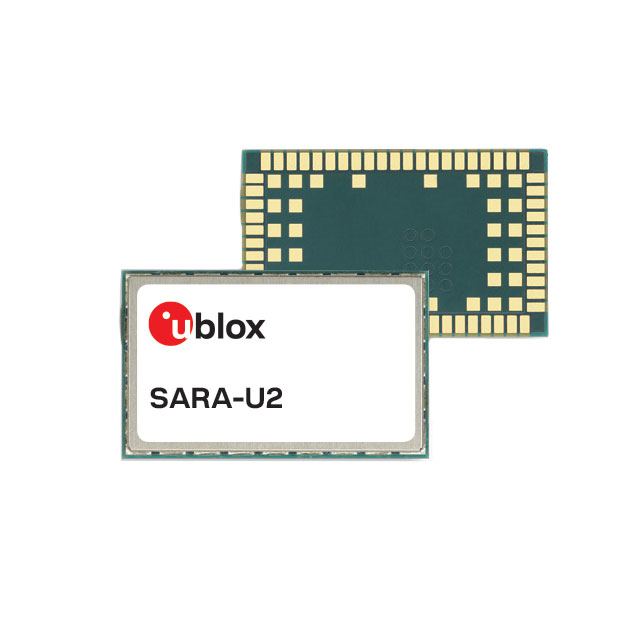

SARA-U201-03B

Obsolete

u-blox

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Obsolete

u-blox

RF TXRX MODULE CELL SMD

Technical Specifications

Parameters and characteristics for this part

Part	Sensitivity	Serial Interfaces	Frequency	Voltage - Supply [Min]	Voltage - Supply [Max]	Data Rate	Mounting Type	Package / Case	RF Family/Standard	Current - Transmitting	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving	Antenna Type	Protocol	Voltage - Supply
u-blox SARA-U201-04B	-111 dBm	GPIO I2C UART USB	800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz	3.3 V	4.4 V	7.2 Mbps	Surface Mount	96-SMD Module	Cellular	550 mA	85 °C	-40 °C	550 mA	Antenna Not Included	3G (AT&T)
u-blox SARA-U201-03B	-111 dBm	SPI UART	800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz			7.2 Mbps	Surface Mount	96-SMD Module	Cellular	620 mA	85 °C	-40 °C	620 mA	Antenna Not Included	3G (AT&T)	3.8 V
u-blox SARA-U270-03S	-111 dBm	GPIO I2C UART USB	850 MHz 1800 MHz	3.3 V	4.4 V	7.2 Mbps	Surface Mount	96-SMD Module	Cellular	595 mA	85 °C	-40 °C	595 mA	Antenna Not Included	3G (AT&T)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cellular 3G (AT&T) Transceiver Module 800MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz Antenna Not Included Surface Mount

Technical documentation and resources

No documents available
