96AB2-152-F
ActiveGrayhill Inc.

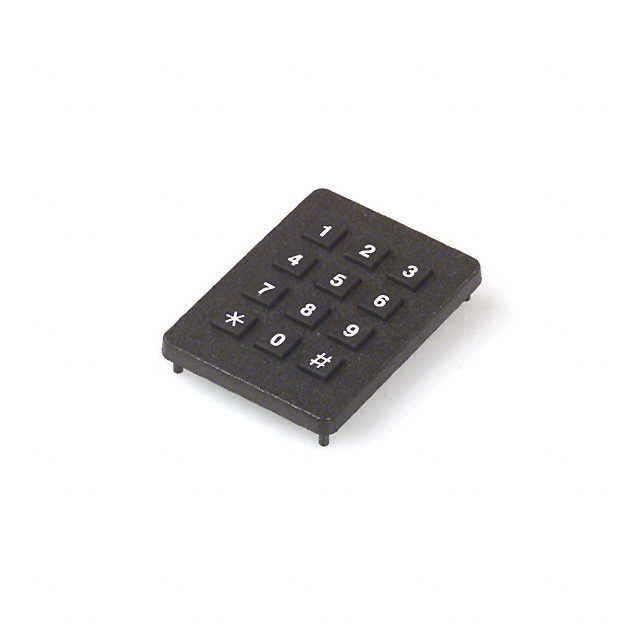

SWITCH KEYPAD 12KEY 0.005A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
96AB2-152-F
ActiveGrayhill Inc.
SWITCH KEYPAD 12KEY 0.005A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 96AB2-152-F |
|---|---|
| Contact Rating @ Voltage | 0.005 A, 12 VDC |
| Illumination | Non-Illuminated |
| Ingress Protection | IP40 |
| Key Color | Black |
| Key Type | Polymer |
| Legend | Telephone Format |
| Legend Color | White |
| Legend Type | Fixed |
| Matrix (Columns x Rows) [custom] | 4 |
| Matrix (Columns x Rows) [custom] | 3 |
| Mounting Type | Panel Mount, Front |
| Number of Keys | 12 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Operational Life | 1000000 Cycles |
| Output Type | 1.81 mOhm |
| Switch Type | Conductive Rubber |
| Termination Style | Pin Header |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.06 | |
| 10 | $ 30.75 | |||
| 25 | $ 29.46 | |||
| 50 | $ 27.62 | |||
| 100 | $ 26.70 | |||
| 250 | $ 25.22 | |||
Description
General part information
96AB2 Series
Keypad Switch 12 Polymer Keys Conductive Rubber Contacts Matrix Output Non-Illuminated 0.005A @ 12VDC
