A6E-0101-N

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6E-0101-N

Actuator Level	Flush, Recessed
Actuator Type	Slide (Standard)
Circuit	SPST
Contact Finish	Gold
Current Rating (Amps)	25 mA
Electrical Life	1000 Cycles
Height Above Board	0.23 in
Height Above Board	5.85 mm
Length [x]	26.76 mm
Length [x]	1.054 in
Mechanical Life	1000 Cycles
Mounting Type	Through Hole
Number of Positions	10
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	False

A6E Series

Part	Actuator Level	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Pitch [x]	Pitch	Pitch [x]	Mechanical Life	Length [x]	Length [x]	Contact Finish	Voltage Rating	Number of Positions	Electrical Life	Actuator Type	Termination Style	Height Above Board	Height Above Board	Circuit	Length	Length
Omron Electronics Inc-EMC Div A6E-9101-N	Flush Recessed	Through Hole	-20 C	70 °C	25 mA	0.1 in	Full	2.54 mm	1000 Cycles	0.954 "	24.23 mm	Gold	24 VDC	9	1000 Cycles	Slide (Standard)	PC Pin	0.23 in	5.85 mm	SPST
Omron Electronics Inc-EMC Div A6E-2104-N	Raised	Through Hole	-20 C	70 °C	25 mA	0.1 in	Full	2.54 mm	1000 Cycles			Gold	24 VDC	2	1000 Cycles	Slide (Standard)	PC Pin	0.277 in	7.05 mm	SPST	6.44 mm	0.254 in
Omron Electronics Inc-EMC Div A6E-0101-N	Flush Recessed	Through Hole	-20 C	70 °C	25 mA	0.1 in	Full	2.54 mm	1000 Cycles	1.054 in	26.76 mm	Gold	24 VDC	10	1000 Cycles	Slide (Standard)	PC Pin	0.23 in	5.85 mm	SPST
Omron Electronics Inc-EMC Div A6E-3104-N	Raised	Through Hole	-20 C	70 °C	25 mA	0.1 in	Full	2.54 mm	1000 Cycles			Gold	24 VDC		1000 Cycles	Slide (Standard)	PC Pin	0.277 in	7.05 mm	SPST	8.99 mm	0.354 in
Omron Electronics Inc-EMC Div A6E-2101-N	Flush Recessed	Through Hole	-20 C	70 °C	25 mA	0.1 in	Full	2.54 mm	1000 Cycles			Gold	24 VDC	2	1000 Cycles	Slide (Standard)	PC Pin	0.23 in	5.85 mm	SPST	6.44 mm	0.254 in
Omron Electronics Inc-EMC Div A6E-6104-N	Raised	Through Hole	-20 C	70 °C	25 mA	0.1 in	Full	2.54 mm	1000 Cycles	0.654 in	16.61 mm	Gold	24 VDC	6	1000 Cycles	Slide (Standard)	PC Pin	0.277 in	7.05 mm	SPST
Omron Electronics Inc-EMC Div A6E-8101-N	Flush Recessed	Through Hole	-20 C	70 °C	25 mA	0.1 in	Full	2.54 mm	1000 Cycles			Gold	24 VDC	8	1000 Cycles	Slide (Standard)	PC Pin	0.23 in	5.85 mm	SPST
Omron Electronics Inc-EMC Div A6E-5104-N	Raised	Through Hole	-20 C	70 °C	25 mA	0.1 in	Full	2.54 mm	1000 Cycles			Gold	24 VDC		1000 Cycles	Slide (Standard)	PC Pin	0.277 in	7.05 mm	SPST	14.06 mm	0.554 "
Omron Electronics Inc-EMC Div A6E-4101-N	Flush Recessed	Through Hole	-20 C	70 °C	25 mA	0.1 in	Full	2.54 mm	1000 Cycles			Gold	24 VDC	4	1000 Cycles	Slide (Standard)	PC Pin	0.23 in	5.85 mm	SPST	11.52 mm	0.454 in
Omron Electronics Inc-EMC Div A6E-6101-N	Flush Recessed	Through Hole	-20 C	70 °C	25 mA	0.1 in	Full	2.54 mm	1000 Cycles	0.654 in	16.61 mm	Gold	24 VDC	6	1000 Cycles	Slide (Standard)	PC Pin	0.23 in	5.85 mm	SPST

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.15
		1	$ 4.51
		17	$ 6.04
		17	$ 4.12
		34	$ 3.75
		34	$ 5.79
		85	$ 5.47
		85	$ 3.45
		238	$ 5.13
		442	$ 4.93
		952	$ 4.70

Description

General part information

A6E Series

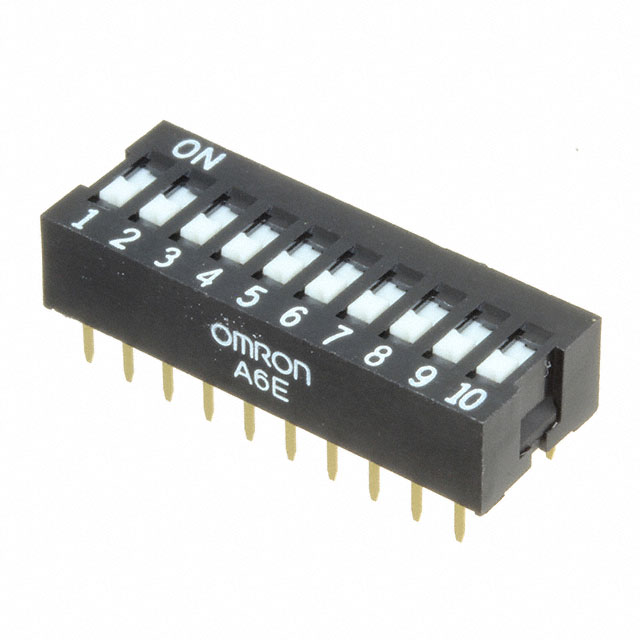

Dip Switch SPST 10 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
