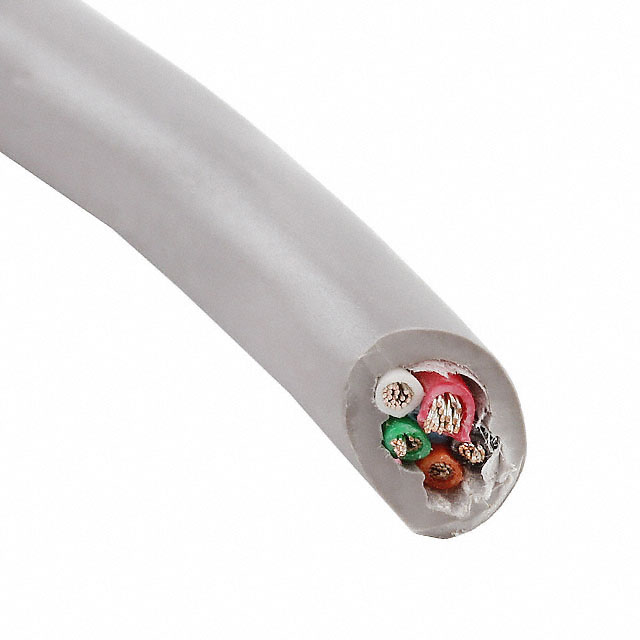

1175L SL001

Active

ALPHA WIRE

CABLE 5COND 22AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 5COND 22AWG SLATE 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1175L SL001

Cable Type	Multi-Conductor
Conductor Insulation	Low Smoke Zero Halogen (LSZH)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	5.11 mm
Jacket (Insulation) Diameter [diameter]	0.201 in
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	5
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Insulation	Cable Type	Wire Gauge	Voltage	Usage	Jacket Color	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]
ALPHA WIRE 1175L SL001	Low Smoke Zero Halogen (LSZH)	Multi-Conductor	22 AWG	300 V	Communication Control	Slate	Copper Tinned	0.025 in	0.635 mm	5.11 mm	0.201 in	1000 ft	304.8 m	5	7	30 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 659.38

General part information

5 Conductor Multi-Conductor Cable Slate 22 AWG 1000.0' (304.8m)
