AT480DA

Active

NKK Switches

SWITCH ACCESS SQUARE SPOT ILLUMINATED CAP PUSH BUTTON SWITCH

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ACCESS SQUARE SPOT ILLUMINATED CAP PUSH BUTTON SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	AT480DA

Color	Amber LED, Black
For Use With/Related Products	LB Series
Illumination	Illumination Opening
Mounting Type	Snap Fit
Shape	Square
Size [x]	13.2 mm
Size [y]	13.2 mm
Size [z]	3.5 mm
Switch Type	Pushbutton

Part	For Use With/Related Products	Switch Type	Mounting Type	Color	Shape	Illumination	Size [x]	Size [z]	Size [y]
NKK Switches AT480FB	LB Series	Pushbutton	Snap Fit	Green LED White	Square	Illumination Opening	13.2 mm	3.5 mm	13.2 mm
NKK Switches AT480FF	LB Series	Pushbutton	Snap Fit	Green Green LED	Square	Illumination Opening	13.2 mm	3.5 mm	13.2 mm
NKK Switches AT480CE	LB Series	Pushbutton	Snap Fit	Red LED Yellow	Square	Illumination Opening	13.2 mm	3.5 mm	13.2 mm
NKK Switches AT480CF	LB Series	Pushbutton	Snap Fit	Green Red LED	Square	Illumination Opening	13.2 mm	3.5 mm	13.2 mm
NKK Switches AT480DA	LB Series	Pushbutton	Snap Fit	Amber LED Black	Square	Illumination Opening	13.2 mm	3.5 mm	13.2 mm
NKK Switches AT480DF	LB Series	Pushbutton	Snap Fit	Amber LED Green	Square	Illumination Opening	13.2 mm	3.5 mm	13.2 mm
NKK Switches AT480DB	LB Series	Pushbutton	Snap Fit	Gray Red LED	Square	Illumination Opening	13.2 mm	3.5 mm	13.2 mm
NKK Switches AT480FC	LB Series	Pushbutton	Snap Fit	Green LED Red	Square	Illumination Opening	13.2 mm	3.5 mm	13.2 mm
NKK Switches AT480DC	LB Series	Pushbutton	Snap Fit	Amber LED Red	Square	Illumination Opening	13.2 mm	3.5 mm	13.2 mm
NKK Switches AT480CFB	LB Series	Pushbutton	Snap Fit	Red/Green LED White	Square	Illumination Opening	13.2 mm	3.5 mm	13.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

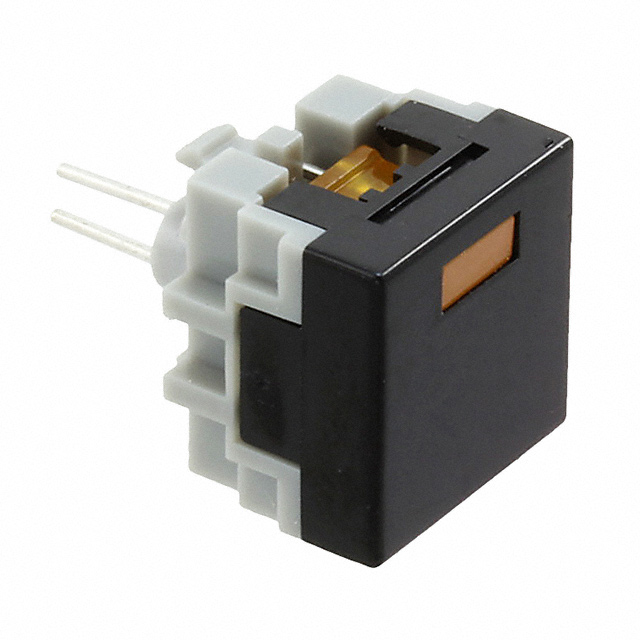

Square Pushbutton Switch Cap Black, Amber LED Snap Fit
