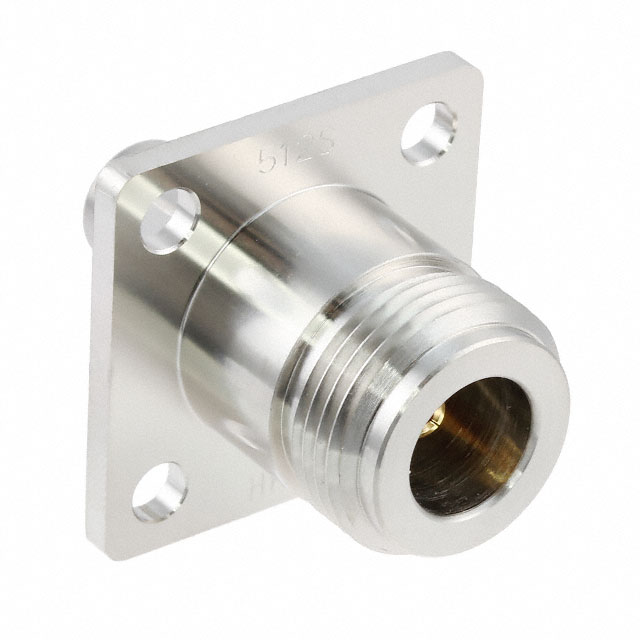

HRM-512S(40)

Active

Hirose Electric USA, Inc.

CONN ADAPT SMA PLUG TO N JACK

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN ADAPT SMA PLUG TO N JACK

Technical Specifications

Parameters and characteristics for this part

Specification	HRM-512S(40)

Adapter Type	Jack to Jack
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mating Cycles	1000
Mounting Feature	Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Center Gender	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Dielectric Material	Convert From (Adapter End)	Style	Center Contact Plating	Mounting Feature	Conversion Type	Impedance	Adapter Type	Mating Cycles	Convert To (Adapter End)
Hirose Electric USA, Inc. HRM-512S(40)	Female to Female	85 °C	-55 °C	12.4 GHz	Polytetrafluoroethylene (PTFE)	SMA Plug Male Pin	Straight	Gold	Flange	Between Series	50 Ohms	Jack to Jack	1000	Female Socket N Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To N Jack, Female Socket 50 Ohms
