TR9KX3750LCPIMR6B

Active

GlobTek, Inc.

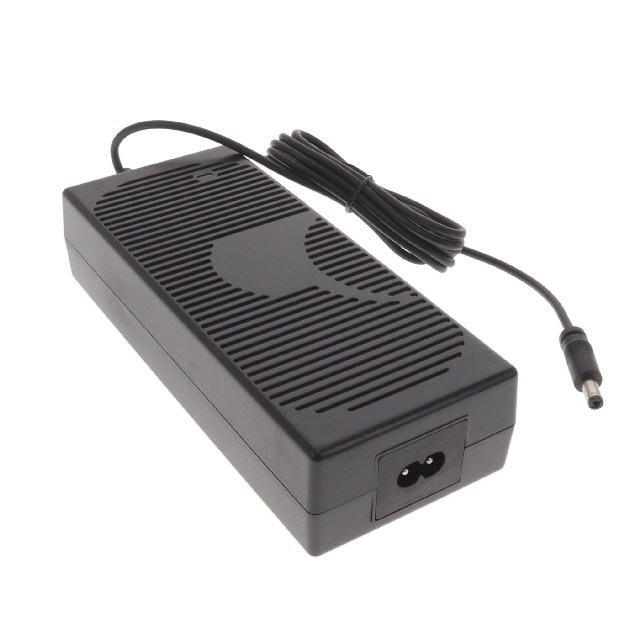

AC/DC DESKTOP ADAPTER 48V 180W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 48V 180W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9KX3750LCPIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	ETL, EAC, UKRSepro, CE, VCCI, cETLus, CB, CCC, S-Mark, PSE
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	3.75 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	180 W
Region Utilized	International
Size / Dimension [x]	6.95 in
Size / Dimension [x]	176.5 mm
Size / Dimension [y]	2.91 "
Size / Dimension [y]	74 mm
Size / Dimension [z]	1.58 "
Size / Dimension [z]	40 mm
Standard Number	62368-1, 60335-1, 60950-1, 60601-1-11, 60601-1-2
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	48 V

Part	Voltage - Input [Min]	Voltage - Input [Max]	Polarization	Cord Length	Cord Length	Efficiency	Form	Input Connector	Applications	Output Connector	Output Connector [diameter]	Output Connector [x]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Standard Number	Approval Agency	No Load Power Consumption [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Voltage - Output	Input Type	Region Utilized
GlobTek, Inc. TR9KX3750LCPIMR6B	90 VAC	264 VAC	Positive Center	60.2 in	1.53 m	CoC Tier 2 Level VI	Desktop (Class II)	IEC 320-C8	Household Appliances ITE (Commercial) Medical	Barrel Plug	2.5 mm 5.5 mm	11 mm	-10 °C	40 °C	180 W	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	CB CCC CE cETLus EAC ETL PSE S-Mark UKRSepro VCCI	150 mW	6.95 in	1.58 "	40 mm	2.91 "	74 mm	176.5 mm	3.75 A	48 V	Cord	International

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 66.07

General part information

48V 180 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
