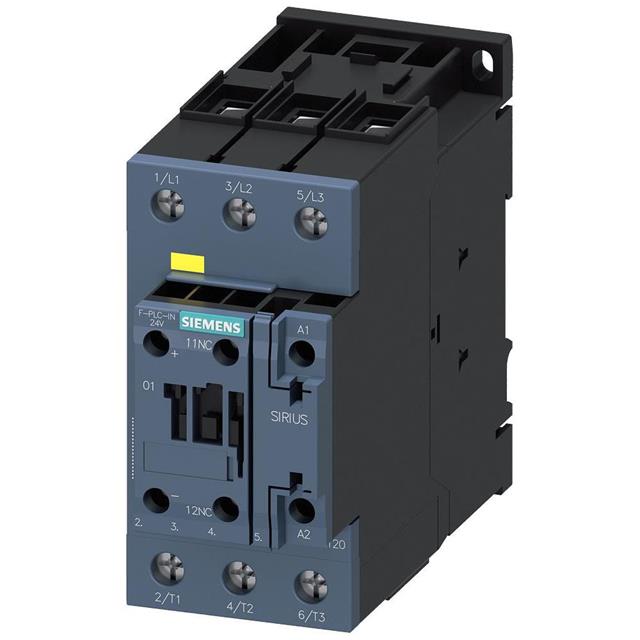

3RT20361SB30
ActiveSiemens
CONTACTOR. AC-3. 50 A/400 V/60
Deep-Dive with AI
Search across all available documentation for this part.
3RT20361SB30
ActiveSiemens
CONTACTOR. AC-3. 50 A/400 V/60
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RT20361SB30 |
|---|---|
| Coil Power | 40 W |
| Coil Voltage [Max] | 33 VAC/DC |
| Coil Voltage [Min] | 21 VAC/DC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 51 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Operate Time | 110 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Release Time | 55 ms |
| Switching Voltage | 690 VAC |
| Termination Style | Screw Terminal |
3RT2036 Series
...
| Part | Contact Rating (Current) | Release Time | Switching Voltage | Operate Time | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Features | Coil Voltage [Min] | Coil Voltage [Max] | Coil Power | Mounting Type | Must Operate Voltage | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens | 690 A | 18 ms | 690 VAC | 80 ms | 3PST-NO (3 Form A) | -25 °C | 60 °C | Screw Terminal | Auxiliary Contacts | 400 VAC | 440 VAC | 188 VA | Chassis Mount DIN Rail | ||
Siemens | 51 A | 18 ms | 690 VAC | 80 ms | 3PST-NO (3 Form A) | -25 °C | 60 °C | Screw Terminal | Auxiliary Contacts | 190 VA | Chassis Mount DIN Rail | 38.4 VAC | 48 VAC/DC | ||
Siemens | 51 A | 55 ms | 690 VAC | 110 ms | 3PST-NO (3 Form A) | -25 °C | 60 °C | Screw Terminal | Auxiliary Contacts | 21 VAC/DC | 33 VAC/DC | 40 W | Chassis Mount DIN Rail | ||
Siemens | 51 A | 55 ms | 690 VAC | 110 ms | 3PST-NO (3 Form A) | -25 °C | 60 °C | Screw Terminal | Auxiliary Contacts | 21 VAC/DC | 33 VAC/DC | 40 W | Chassis Mount DIN Rail | ||
Siemens | 51 A | 18 ms | 690 VAC | 80 ms | 3PST-NO (3 Form A) | -25 °C | 60 °C | Screw Terminal | Auxiliary Contacts | 188 VA | Chassis Mount DIN Rail | 187 VAC | 220 VAC/DC | ||
Siemens | 51 A | 18 ms | 690 VAC | 80 ms | 3PST-NO (3 Form A) | -25 °C | 60 °C | Screw Terminal | Auxiliary Contacts | 190 VA | Chassis Mount DIN Rail | 88 VAC/DC | 110 VAC/DC | ||
Siemens | 51 A | 18 ms | 690 VAC | 80 ms | 3PST-NO (3 Form A) | -25 °C | 60 °C | Screw Terminal | Auxiliary Contacts | 188 VA | Chassis Mount DIN Rail | 96 VAC | 120 VAC | ||
Siemens | 51 A | 18 ms | 690 VAC | 80 ms | 3PST-NO (3 Form A) | -25 °C | 60 °C | Screw Terminal | Auxiliary Contacts | 212 VA | Chassis Mount DIN Rail | 277 VAC | |||
Siemens | 51 A | 55 ms | 690 VAC | 110 ms | 3PST-NO (3 Form A) | -40 °C | 70 °C | Screw Terminal | Auxiliary Contacts | 23 W | Chassis Mount DIN Rail | 77 VDC | 110 VDC | ||
Siemens | 51 A | 18 ms | 690 VAC | 80 ms | 3PST-NO (3 Form A) | -25 °C | 60 °C | Screw Terminal | Auxiliary Contacts | 100 VAC/DC | 110 VAC | 188 VA | Chassis Mount DIN Rail |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 376.60 | |
Description
General part information
3RT2036 Series
CONTACTOR. AC-3. 50 A/400 V/60
