082-4352

Active

Amphenol RF

CONN N PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN N PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	082-4352

Body Finish	Silver
Body Material	Brass
Cable Group	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms

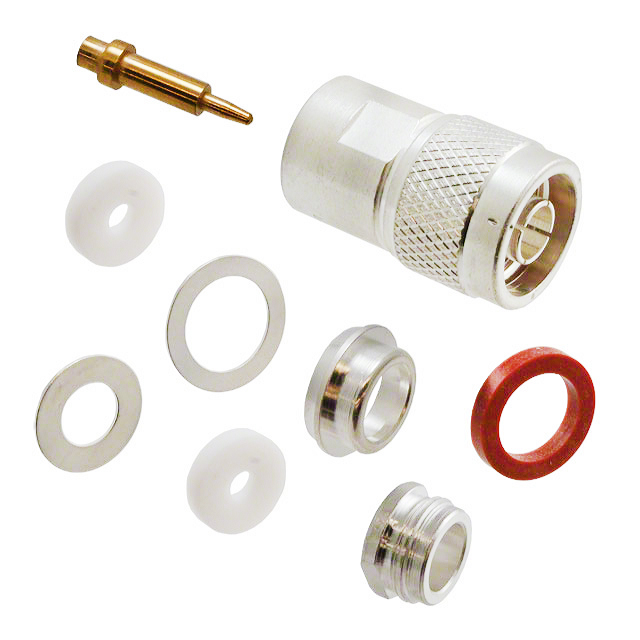

Includes	1 Gasket, 1 Braid Clamp, 1 Connector, 1 Contact, 2 Washers, 1 Clamp
Ingress Protection	Weatherproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	1500 V

Part	Connector Style	Ingress Protection	Connector Type	Body Material	Number of Ports	Includes	Body Finish	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Mounting Type	Dielectric Material	Contact Termination	Voltage Rating	Insertion Loss	Mating Cycles	Housing Color	Impedance	Frequency - Max [Max]	Center Contact Material	Cable Group
Amphenol RF 082-4352	N Type	Weatherproof	Male Pin Plug	Brass	1	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 2 Washers	Silver	Gold	-65 ░C	165 °C	Clamp	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Solder	1500 V	0.15 dB	500	Silver	50 Ohms	11 GHz	Brass	213 214 225 302 393 87 8A 9 9A 9B RG-8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
