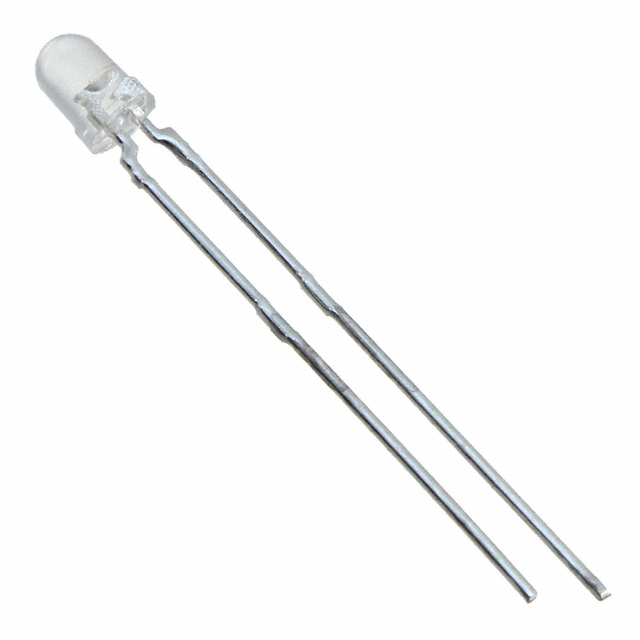

VSLB3940
ActiveVishay General Semiconductor - Diodes Division
EMITTER IR 940NM 100MA RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VSLB3940
ActiveVishay General Semiconductor - Diodes Division
EMITTER IR 940NM 100MA RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VSLB3940 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | Radial |
| Type | Infrared (IR) |
| Viewing Angle | 44 ° |
| Voltage - Forward (Vf) (Typ) | 1.15 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.51 | |
| 10 | $ 0.33 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.18 | |||
Description
General part information
VSLB3940 Series
Infrared (IR) Emitter 940nm 1.15V 100mA 32mW/sr @ 100mA 44° Radial
