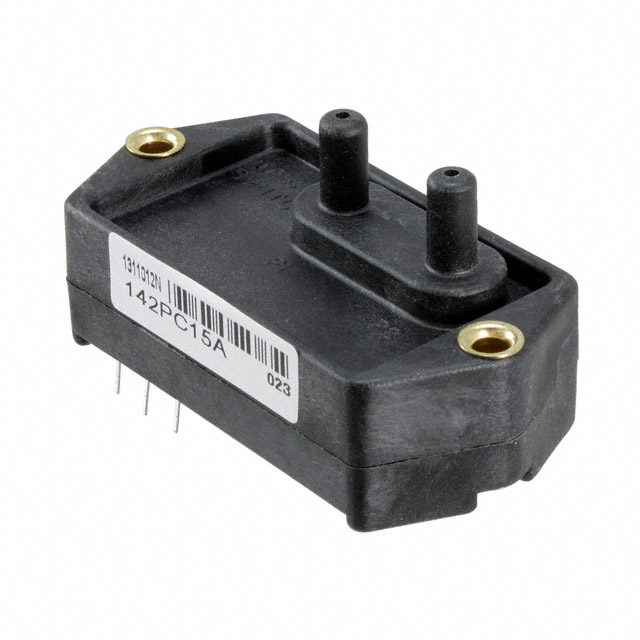

142PC15AW95

Active

Honeywell Sensing and Productivity Solutions

SENSOR 15PSIA 0.2" 5.33V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 15PSIA 0.2" 5.33V

Technical Specifications

Parameters and characteristics for this part

Specification	142PC15AW95

Accuracy	0.4 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	310.26 kPa
Maximum Pressure [Max]	45 PSI
Mounting Type	Through Hole
Operating Pressure [Max]	103.42 kPa
Operating Pressure [Max]	15 PSI
Operating Pressure [Min]	2 PSI
Operating Pressure [Min]	13.79 kPa
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output [Max]	5.33 V
Output [Min]	1 V
Output Type	Analog Voltage
Package / Case	3-SIP Module
Port Size	5 mm, 0.2 "
Port Style	Barbless
Termination Style	PC Pin
Voltage - Supply [Max]	16 V
Voltage - Supply [Min]	7 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy	Port Size	Port Size	Port Size	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure [custom]	Operating Pressure [custom]	Package / Case	Output [Min]	Output [Max]	Applications	Features	Pressure Type	Mounting Type	Operating Pressure [Min]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]
Honeywell Sensing and Productivity Solutions 142PC15A104	7 V	16 V	Analog Voltage	Barbless	310.26 kPa	45 PSI	0.87 %	Dual Male Tube	5 mm	0.2 "	PC Pin	85 °C	-40 °C	15 PSI	103.42 kPa	Module	1 V	6 V
Honeywell Sensing and Productivity Solutions 142PC15D	7 V	16 V	Analog Voltage	Barbless	310.26 kPa	45 PSI	0.75 %	Dual Male Tube	5 mm	0.2 "	PC Pin	85 °C	-40 °C	15 PSI	103.42 kPa	3-SIP Module	1 V	6 V	Board Mount	Amplified Output Temperature Compensated	Differential	Through Hole
Honeywell Sensing and Productivity Solutions 142PC15DW	7 V	16 V	Analog Voltage	Barbless	310.26 kPa	45 PSI	0.4 %	Dual Male Tube	5 mm	0.2 "	PC Pin	85 °C	-40 °C	15 PSI	103.42 kPa	3-SIP Module	1 V	6 V	Board Mount	Amplified Output Temperature Compensated	Differential	Through Hole
Honeywell Sensing and Productivity Solutions 142PC15AW95	7 V	16 V	Analog Voltage	Barbless	310.26 kPa	45 PSI	0.4 %		0.2 " 5 mm		PC Pin	85 °C	-40 °C			3-SIP Module	1 V	5.33 V	Board Mount	Amplified Output Temperature Compensated		Through Hole	2 PSI	13.79 kPa	103.42 kPa	15 PSI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 878.94

General part information

Pressure Sensor 2PSI ~ 15PSI (13.79kPa ~ 103.42kPa) Absolute Male - 0.2" (5mm) Tube 1 V ~ 5.33 V 3-SIP Module
