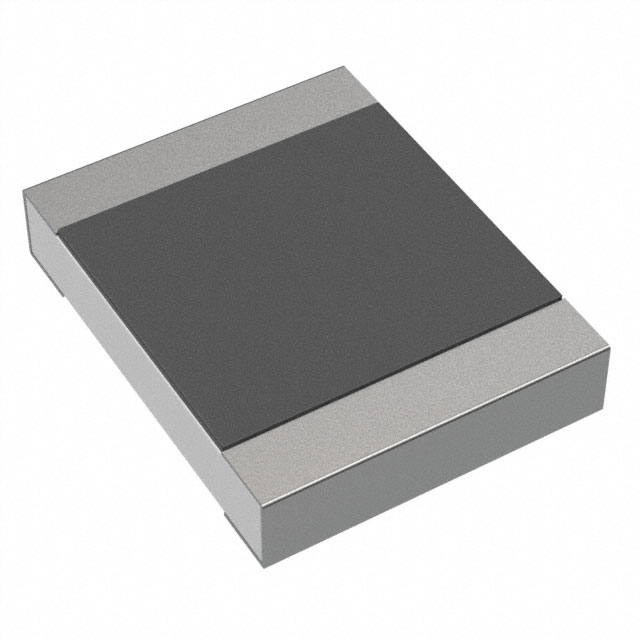

RN73H2ETTD3090A25

Active

KOA Speer Electronics, Inc.

FIXED RESISTOR, METAL FILM, 0.25W, 309OHM, 200V, 0.05% +/-TOL, 25PPM/CEL, SURFACE MOUNT, 1210, CHIP, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RN73H2ETTD3090A25

Active

KOA Speer Electronics, Inc.

FIXED RESISTOR, METAL FILM, 0.25W, 309OHM, 200V, 0.05% +/-TOL, 25PPM/CEL, SURFACE MOUNT, 1210, CHIP, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RN73H2ETTD3090A25

Composition	Metal Film
Features	Automotive AEC-Q200, Moisture Resistant
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	1210
Package / Case	3225 Metric
Power (Watts)	0.25 W
Power (Watts)	250 mW
Ratings	AEC-Q200
Resistance	309 Ohms
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	2.5 mm
Size / Dimension [y]	0.098 in
Supplier Device Package	1210
Temperature Coefficient	25 ppm/°C
Tolerance	0.05 %

RN73H2E Series

...

Part	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Power (Watts)	Power (Watts)	Resistance	Temperature Coefficient	Number of Terminations	Ratings	Features	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Tolerance
KOA Speer Electronics, Inc. RN73H2ETTD8661D10	1210	3225 Metric	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in	0.5 W 250 mW	0.25 W 0.5 W	8.66 kOhms	10 ppm/°C	2	AEC-Q200	Automotive AEC-Q200 Moisture Resistant	Metal Film	155 °C	-55 °C	1210
KOA Speer Electronics, Inc. RN73H2ETTD3442A10	1210	3225 Metric	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in	250 mW	0.25 W	34.4 kOhms	10 ppm/°C	2	AEC-Q200	Automotive AEC-Q200 Moisture Resistant	Metal Film	155 °C	-55 °C	1210	0.05 %
KOA Speer Electronics, Inc. RN73H2ETTD3090A25	1210	3225 Metric	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in	250 mW	0.25 W	309 Ohms	25 ppm/°C	2	AEC-Q200	Automotive AEC-Q200 Moisture Resistant	Metal Film	155 °C	-55 °C	1210	0.05 %
KOA Speer Electronics, Inc. RN73H2ETTD8761D25	1210	3225 Metric	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in	250 mW	0.25 W	8.76 kOhms	25 ppm/°C	2	AEC-Q200	Automotive AEC-Q200 Moisture Resistant	Metal Film	155 °C	-55 °C	1210
KOA Speer Electronics, Inc. RN73H2ETTD1583D25	1210	3225 Metric	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in	0.5 W	0.5 W	158 kOhms	25 ppm/°C	2	AEC-Q200	Automotive AEC-Q200 Moisture Resistant	Metal Film	155 °C	-55 °C	1210
KOA Speer Electronics, Inc. RN73H2ETTD5171F100	1210	3225 Metric	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in	250 mW	0.25 W	5.17 kOhms	100 ppm/°C	2	AEC-Q200	Automotive AEC-Q200 Moisture Resistant	Metal Film	155 °C	-55 °C	1210	1 %
KOA Speer Electronics, Inc. RN73H2ETTD5760F50	1210	3225 Metric	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in	250 mW	0.25 W	576 Ohms	50 ppm/°C	2	AEC-Q200	Automotive AEC-Q200 Moisture Resistant	Metal Film	155 °C	-55 °C	1210	1 %
KOA Speer Electronics, Inc. RN73H2ETTD1143A10	1210	3225 Metric	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in	250 mW	0.25 W	114 kOhms	10 ppm/°C	2	AEC-Q200	Automotive AEC-Q200 Moisture Resistant	Metal Film	155 °C	-55 °C	1210	0.05 %
KOA Speer Electronics, Inc. RN73H2ETTD9200A10	1210	3225 Metric	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in	250 mW	0.25 W	920 Ohms	10 ppm/°C	2	AEC-Q200	Automotive AEC-Q200 Moisture Resistant	Metal Film	155 °C	-55 °C	1210	0.05 %
KOA Speer Electronics, Inc. RN73H2ETTD2492A10	1210	3225 Metric	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in	0.5 W 250 mW	0.25 W 0.5 W	24.9 kOhms	10 ppm/°C	2	AEC-Q200	Automotive AEC-Q200 Moisture Resistant	Metal Film	155 °C	-55 °C	1210	0.05 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1000	$ 0.43
	Digi-Reel®	1000	$ 0.43
	Tape & Reel (TR)	5000	$ 0.43

Description

General part information

RN73H2E Series

309 Ohms ±0.05% 0.25W, 1/4W Chip Resistor 1210 (3225 Metric) Automotive AEC-Q200, Moisture Resistant Metal Film
