1415539-4

Obsolete

TE Connectivity Potter & Brumfield Relays

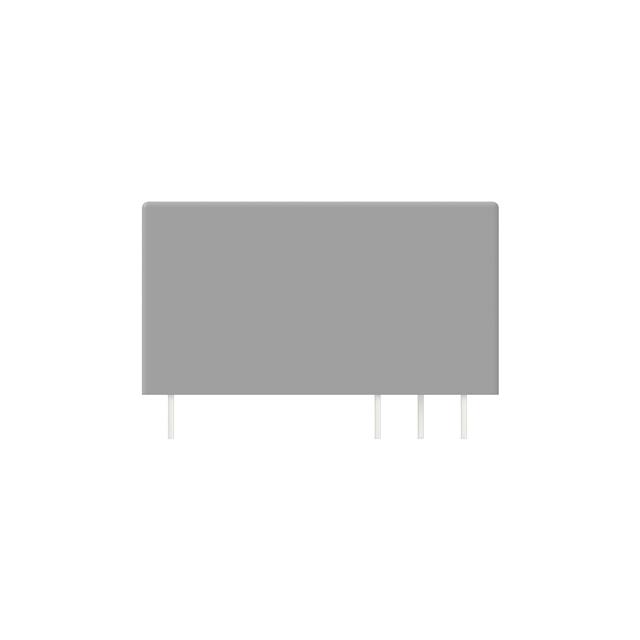

RELAY GEN PURPOSE SPDT 12A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1415539-4

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 12A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1415539-4

Approval Agency	cURus, CQC, VDE, CSA
Coil Current	16.7 mA
Coil Insulation	Class F
Coil Resistance	1440 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	12 A
Load - Max Switching	4800 VA
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Must Release Voltage	2.4 VDC
Operate Time	8 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	6 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

RT1140 Series

Part	Load - Max Switching	Coil Resistance	Contact Form	Approval Agency	Mounting Type	Contact Rating (Current)	Coil Current	Termination Style	Must Operate Voltage	Coil Type	Seal Rating	Contact Material	Release Time	Relay Type	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage [Max]	Coil Voltage	Operate Time	Coil Insulation
TE Connectivity Potter & Brumfield Relays RT114012F	4800 VA	360 Ohms	SPDT (1 Form C)	CQC CSA cURus VDE	Through Hole	12 A	33.3 mA	PC Pin	8.4 VDC	Non Latching	Sealed - Flux Protection	Silver Nickel (AgNi)	6 ms	General Purpose	1.2 VDC	85 °C	-40 °C	400 VAC	12 VDC	8 ms	Class F
TE Connectivity Potter & Brumfield Relays RT114005	4800 VA	62 Ohms	SPDT (1 Form C)	CQC CSA cURus VDE	Through Hole	12 A	80.6 mA	PC Pin	3.5 VDC	Non Latching	Sealed - Flux Protection	Silver Nickel (AgNi)	6 ms	General Purpose	0.5 VDC	85 °C	-40 °C	400 VAC	5 VDC	8 ms	Class F
TE Connectivity Potter & Brumfield Relays 1415539-4	4800 VA	1440 Ohms	SPDT (1 Form C)	CQC CSA cURus VDE	Through Hole	12 A	16.7 mA	PC Pin	16.8 VDC	Non Latching	Sealed - Flux Protection	Silver Nickel (AgNi)	6 ms	General Purpose	2.4 VDC	85 °C	-40 °C	400 VAC	24 VDC	8 ms	Class F
TE Connectivity Potter & Brumfield Relays RT114024	4800 VA	1440 Ohms	SPDT (1 Form C)	CQC CSA cURus VDE	Through Hole	12 A	16.7 mA	PC Pin	16.8 VDC	Non Latching	Sealed - Flux Protection	Silver Nickel (AgNi)	6 ms	General Purpose	2.4 VDC	85 °C	-40 °C	400 VAC	24 VDC	8 ms	Class F
TE Connectivity Potter & Brumfield Relays RT114018	4800 VA	770 Ohms	SPDT (1 Form C)	CQC CSA cURus VDE	Through Hole	12 A	23.4 mA	PC Pin	12.6 VDC	Non Latching	Sealed - Flux Protection	Silver Nickel (AgNi)	6 ms	General Purpose	1.8 VDC	85 °C	-40 °C	400 VAC	18 VDC	8 ms	Class F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RT1140 Series

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
