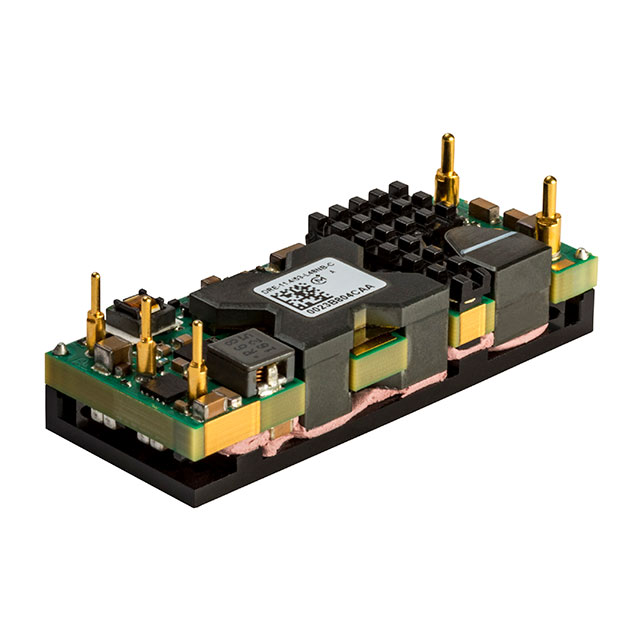

DRE-11.4/53-L48NBS-C
LTBMurata Power Solutions Inc.
DC DC CONVERTER 11.4V 604W
Deep-Dive with AI
Search across all available documentation for this part.
DRE-11.4/53-L48NBS-C
LTBMurata Power Solutions Inc.
DC DC CONVERTER 11.4V 604W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DRE-11.4/53-L48NBS-C |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 53 A |
| Efficiency | 95.5 % |
| Features | Load Sharing, Baseplate, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Eighth Brick |
| Power (Watts) | 604 W |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [y] | 22.9 mm |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [z] | 0.57 " |
| Size / Dimension [z] | 14.5 mm |
| Supplier Device Package | Eighth Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 60 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 11.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 42 | $ 91.38 | |
Description
General part information
DRE-11.4.53 Series
Isolated Module DC DC Converter 1 Output 11.4V 53A 36V - 60V Input
Documents
Technical documentation and resources
No documents available
