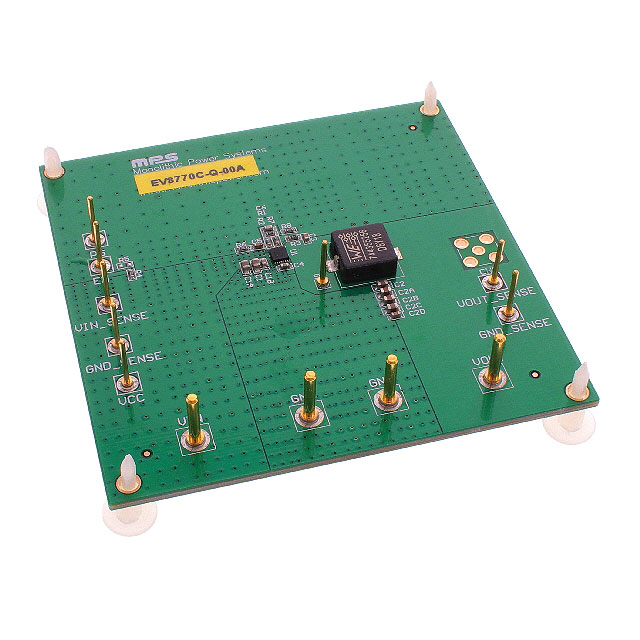

EV8770C-Q-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MP8770C

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MP8770C

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Frequency - Switching	Number of Outputs	Voltage - Input (Max) [Max]	Current - Output	Output Configuration	Function	Package / Case	Mounting Type	Voltage - Input (Min) [Min]	Supplier Device Package	Supplied Contents	Outputs and Type	Outputs and Type	Regulator Topology	Utilized IC / Part	Board Type	Voltage - Input	Voltage - Output	Main Purpose	Output Type	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)
MONOLITHIC POWER SYSTEMS (MPS) MP8770GQ-P	-40 °C	125 ¯C	Buck	700 kHz	1	17 V	8 A	Positive	Step-Down	16-PowerVFQFN	Surface Mount	4.5 V	16-QFN (3x3)
MONOLITHIC POWER SYSTEMS (MPS) EV8770C-Q-00A				700 kHz			8 A							Board(s)	Non-Isolated	1	Buck	MP8770C	Fully Populated	12 VDC	1 V	DC/DC Step Down
MONOLITHIC POWER SYSTEMS (MPS) MP8770GQ-Z	-40 °C	125 ¯C	Buck	700 kHz	1	17 V	8 A	Positive	Step-Down	16-PowerVFQFN	Surface Mount	4.5 V	16-QFN (3x3)
MONOLITHIC POWER SYSTEMS (MPS) MP8770CGQ-P	-40 °C	125 ¯C	Buck	700 kHz	1	17 V	8 A	Positive	Step-Down	16-PowerVFQFN	Surface Mount	3 V	16-QFN (3x3)										Adjustable	17 V	0.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 26.04

General part information

MP8770C - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources
