E2206S.23.86

Active

Prysmian Group

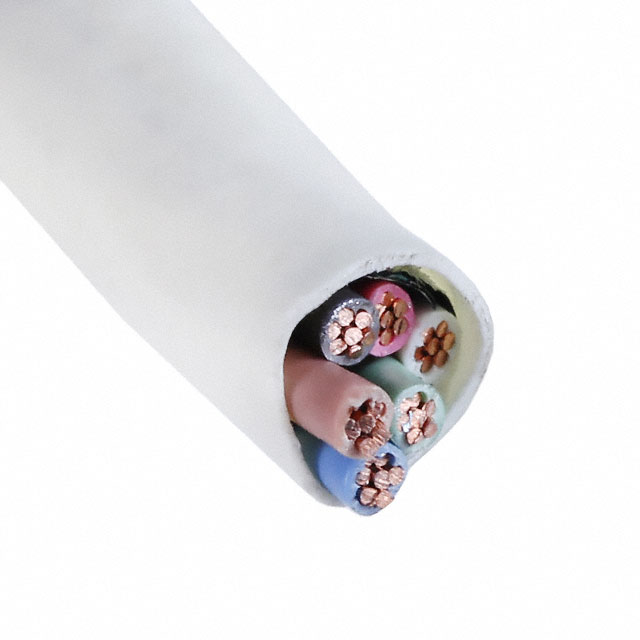

CABLE 6COND 18AWG NATURAL SHLD

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 6COND 18AWG NATURAL SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	E2206S.23.86

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.84 mm
Jacket (Insulation) Diameter [diameter]	0.23 in
Jacket (Insulation) Material	Plenum, Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.203 mm
Jacket (Insulation) Thickness	0.008 in
Jacket Color	Natural
Number of Conductors	6
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	18 AWG

Part	Features	Conductor Material	Shield Material	Shield Coverage	Jacket (Insulation) Material	Number of Conductors	Usage	Cable Type	Wire Gauge	Conductor Insulation	Jacket Color	Length	Length	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
Prysmian Group E2206S.41.07	Drain Wire	Copper Bare	Flexfoil®	100 %	Plenum Poly-Vinyl Chloride (PVC)	6	Alarm Security Sound	Multi-Conductor	18 AWG	Poly-Vinyl Chloride (PVC)	Blue	1000 ft	304.8 m	75 ░C	26 AWG	7	300 V	0.203 mm	0.008 in	Foil	5.84 mm	0.23 in
Prysmian Group E2206S.23.86	Drain Wire	Copper Bare	Flexfoil®	100 %	Plenum Poly-Vinyl Chloride (PVC)	6	Alarm Security Sound	Multi-Conductor	18 AWG	Poly-Vinyl Chloride (PVC)	Natural			75 ░C	26 AWG	7	300 V	0.203 mm	0.008 in	Foil	5.84 mm	0.23 in
Prysmian Group E2206S.41.86	Drain Wire	Copper Bare	Flexfoil®	100 %	Plenum Poly-Vinyl Chloride (PVC)	6	Alarm Security Sound	Multi-Conductor	18 AWG	Poly-Vinyl Chloride (PVC)	Natural	1000 ft	15.24 m 304.8 m	75 ░C	26 AWG	7	300 V	0.203 mm	0.008 in	Foil	5.84 mm	0.23 in	30.5 m 152.4 m	50 ft 100 ft 500 '
Prysmian Group E2206S.41.02	Drain Wire	Copper Bare	Flexfoil®	100 %	Plenum Poly-Vinyl Chloride (PVC)	6	Alarm Safety	Multi-Conductor	18 AWG	Poly-Vinyl Chloride (PVC)		1000 ft	15.24 m 304.8 m	75 ░C	26 AWG	7	300 V	0.25 mm	0.0098 in	Foil	5.84 mm	0.23 in	7.62 m 30.5 m	25 ft 50 ft 100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Conductor Multi-Conductor Cable Natural 18 AWG Foil
