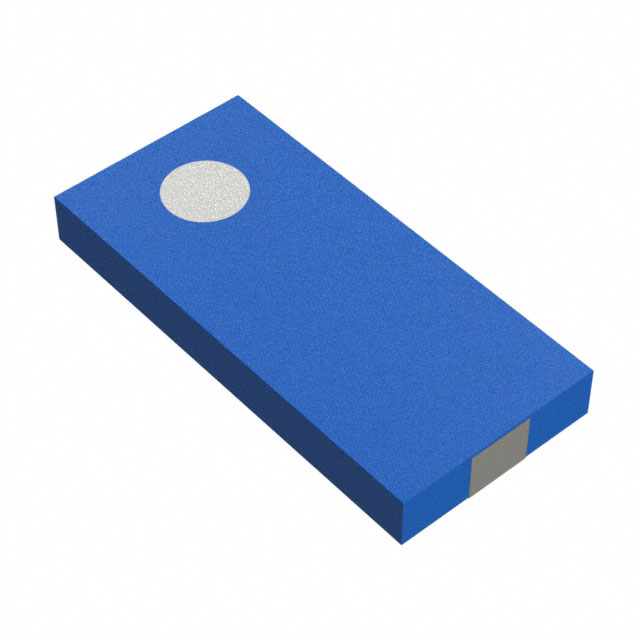

ANT7836LL15R2400A
ActivePulse Electronics
RF ANT 2.45GHZ CHIP SOLDER SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT7836LL15R2400A
ActivePulse Electronics
RF ANT 2.45GHZ CHIP SOLDER SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT7836LL15R2400A |
|---|---|
| Antenna Type | Chip |
| Applications | Wi-Fi, Bluetooth, ISM, Zigbee™ |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 4.1 dBi |
| Height (Max) [Max] | 0.035 in |
| Height (Max) [Max] | 0.9 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 1 W |
| Return Loss | 10 dB |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.66 | |
| 10 | $ 1.48 | |||
| 25 | $ 1.41 | |||
| 100 | $ 1.16 | |||
| 250 | $ 1.08 | |||
| 500 | $ 0.95 | |||
| Digi-Reel® | 1 | $ 1.66 | ||
| 10 | $ 1.48 | |||
| 25 | $ 1.41 | |||
| 100 | $ 1.16 | |||
| 250 | $ 1.08 | |||
| 500 | $ 0.95 | |||
| Tape & Reel (TR) | 1000 | $ 0.62 | ||
Description
General part information
ANT7836 Series
RF ANTENNA Bluetooth, ISM, Wi-Fi, Zigbee™ Chip Solder Surface Mount
