Technical Specifications

Parameters and characteristics for this part

Specification	101119NP

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HB24
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	2.402 "
Size / Dimension [z]	61 mm
Style	Top Entry
Thread Size	NPT-1

Part	Lock Location	Thread Size	Connector Type	Size	Ingress Protection	Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Housing Material	Housing Color	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]
LAPP 101119NP	Locking Clip (1) on Base Bottom	NPT-1	Hood	HB24	IP65 - Dust Tight Water Resistant	Top Entry	120 mm	2.402 "	43 mm	1.693 in	4.724 "	61 mm	Aluminum Alloy	Gray	Powder Coated	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

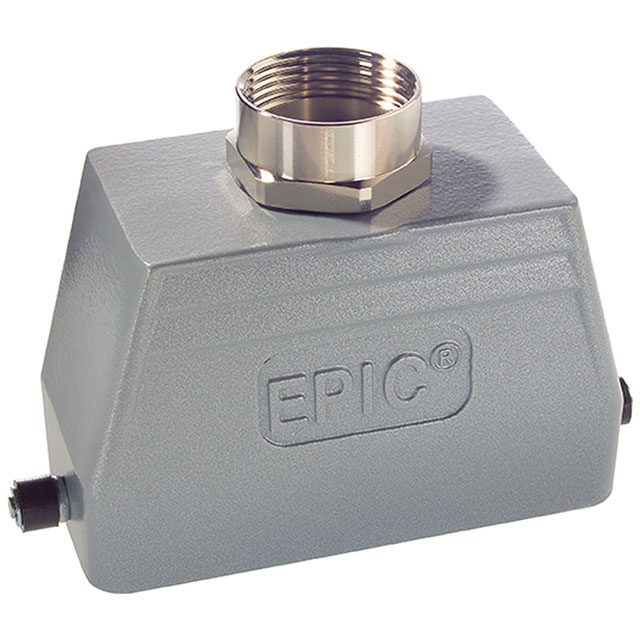

Hood Connector Top Entry NPT-1 HB24 IP65 - Dust Tight, Water Resistant
