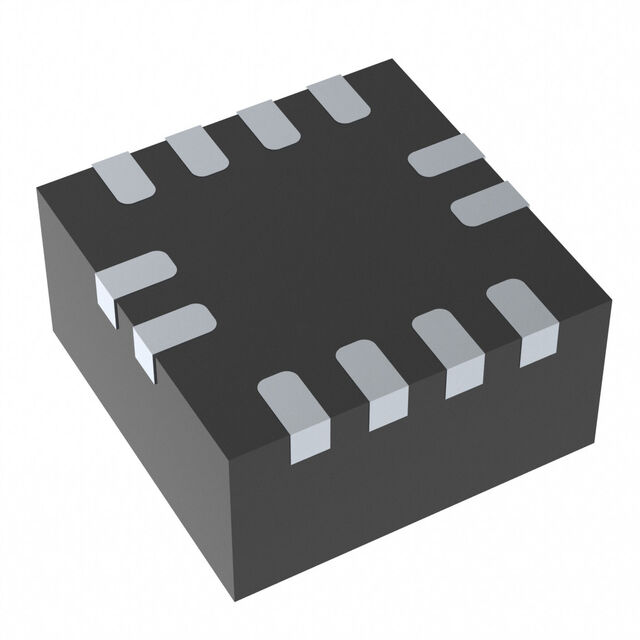

MP28200GG-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 200MA 12QFN
Deep-Dive with AI
Search across all available documentation for this part.
MP28200GG-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 200MA 12QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MP28200GG-Z |
|---|---|
| Current - Output | 200 mA |
| Frequency - Switching | 1.5 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 12-VFQFN |
| Supplier Device Package | 12-QFN (2x2) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2 V |
| Voltage - Output (Max) [Max] | 3.3 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.40 | |
| 10 | $ 1.25 | |||
| 25 | $ 1.19 | |||
| 100 | $ 0.98 | |||
| 250 | $ 0.91 | |||
| 500 | $ 0.81 | |||
| 1000 | $ 0.64 | |||
| 2500 | $ 0.59 | |||
| Digi-Reel® | 1 | $ 1.40 | ||
| 10 | $ 1.25 | |||
| 25 | $ 1.19 | |||
| 100 | $ 0.98 | |||
| 250 | $ 0.91 | |||
| 500 | $ 0.81 | |||
| 1000 | $ 0.64 | |||
| 2500 | $ 0.59 | |||
| Tape & Reel (TR) | 5000 | $ 0.56 | ||
| 10000 | $ 0.54 | |||
Description
General part information
MP28200 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 200mA 12-VFQFN
Documents
Technical documentation and resources
No documents available
