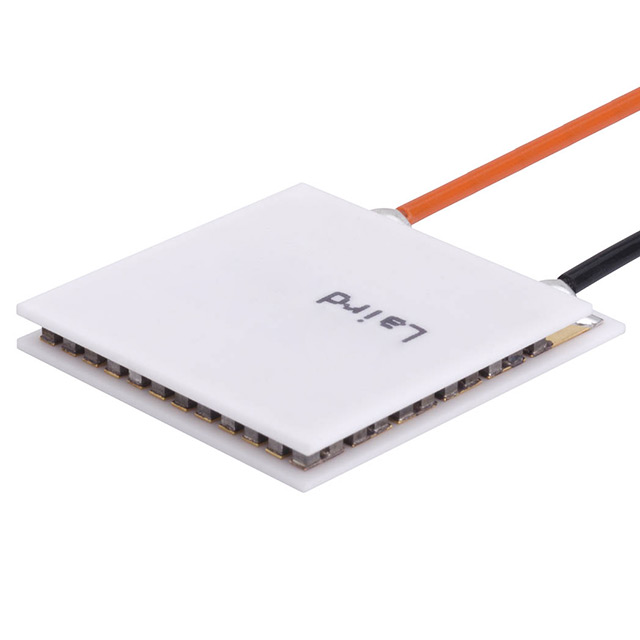

430144-511

Active

Laird Thermal Systems, Inc.

PELTIER HT6,7,F2,3030,TB,RT,W6

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER HT6,7,F2,3030,TB,RT,W6

Technical Specifications

Parameters and characteristics for this part

Specification	430144-511

Current - Max [Max]	3.8 A
Delta Tmax @ Th	64 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	4.09 mm
Number of Stages	1
Operating Temperature	175 °C
Qmax @ Th	18.4 W
Resistance	1.95 Ohms
Size / Dimension [x]	34.04 mm
Size / Dimension [y]	29.97 mm
Voltage - Max [Max]	8.1 V

Part	Delta Tmax @ Th	Voltage - Max [Max]	Number of Stages	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Current - Max [Max]	Resistance	Features	Operating Temperature
Laird Thermal Systems, Inc. 430144-511	64 °C	8.1 V	1	18.4 W	34.04 mm	29.97 mm	4.09 mm	3.8 A	1.95 Ohms	Lead Wires Sealed - Silicone RTV	175 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Peltier Module 18.4W @ 25°C 3.8 A 175°C
