9043-1523-019

Active

Radiall USA, Inc.

SMA M RA NA CR 2.6/50D

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA M RA NA CR 2.6/50D

Technical Specifications

Parameters and characteristics for this part

Specification	9043-1523-019

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RD-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Mating Cycles	Cable Group	Cable Group	Mounting Type	Housing Color	Center Contact Plating	Center Contact Material	Shield Termination	Body Finish	Frequency - Max [Max]	Dielectric Material	Voltage Rating	Impedance	Contact Termination	Body Material	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Ports
Radiall USA, Inc. 9043-1523-001	500	142 223	RG-55	Free Hanging (In-Line) Right Angle	Gold	Gold	Beryllium Copper	Crimp	Gold	12.4 GHz	Polytetrafluoroethylene (PTFE)	335 V	50 Ohms	Crimp	Stainless Steel	SMA	-65 ░C	165 °C	Male Pin Plug	1
Radiall USA, Inc. 9043-1523-002	500	196	RG-178	Free Hanging (In-Line) Right Angle	Gold	Gold	Brass	Crimp	Gold	18 GHz	Polytetrafluoroethylene (PTFE)		50 Ohms	Crimp	Stainless Steel	SMA	-65 ░C	165 °C	Male Pin Plug	1
Radiall USA, Inc. 9043-1523-019	500		RD-316	Free Hanging (In-Line) Right Angle	Gold	Gold	Beryllium Copper	Crimp	Gold	18 GHz	Polytetrafluoroethylene (PTFE)		50 Ohms	Crimp	Stainless Steel	SMA	-65 ░C	165 °C	Male Pin Plug	1
Radiall USA, Inc. 9043-1523-219	500		RG-316DS	Free Hanging (In-Line) Right Angle	Gold	Gold	Beryllium Copper	Crimp	Gold	18 GHz	Polytetrafluoroethylene (PTFE)	250 VDC	50 Ohms	Crimp	Stainless Steel	SMA	-65 ░C	165 °C	Male Pin Plug	1
Radiall USA, Inc. 9043-1523-006	500	141	RG-58	Free Hanging (In-Line) Right Angle	Gold	Gold	Beryllium Copper	Crimp	Gold	18 GHz	Polytetrafluoroethylene (PTFE)		50 Ohms	Crimp	Stainless Steel	SMA	-65 ░C	165 °C	Male Pin Plug	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

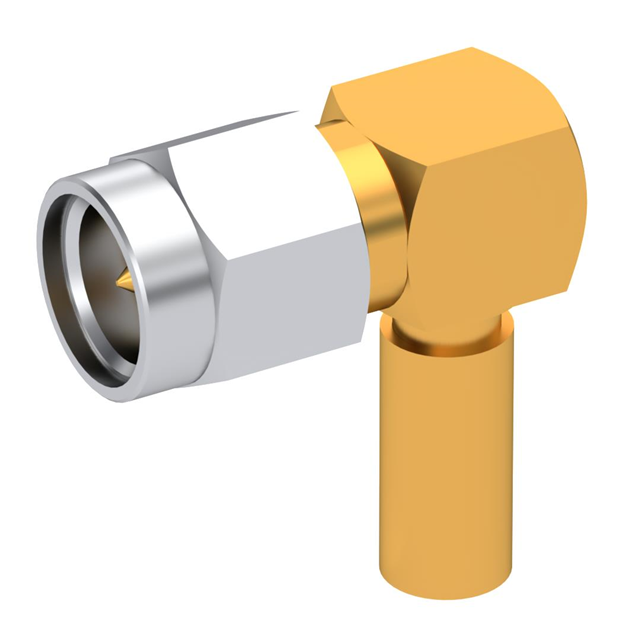

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
