194,BK

Active

Serpac

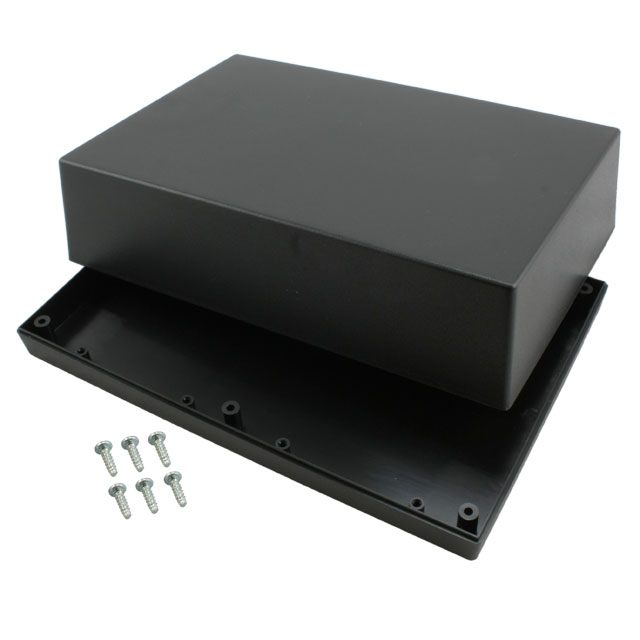

BOX ABS BLACK 9.5"L X 6.34"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 9.5"L X 6.34"W

Technical Specifications

Parameters and characteristics for this part

Specification	194,BK

Area (L x W)	388 cm²
Area (L x W)	60.2 in²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	76.2 mm
Height [z]	3 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension	161.04 mm, 241.3 mm
Size / Dimension [x]	9.5 "
Size / Dimension [y]	6.34 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.76 lb
Weight	344.73 g

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Material	Ratings	Color	Thickness	Thickness	Weight	Weight	Design	Features	Material Flammability Rating	Container Type
Serpac 194,GY	9.5 "	6.34 "	161.04 mm 241.3 mm	60.2 in²	388 cm²	76.2 mm	3 in	Plastic ABS	IP40 NEMA 1	Gray	2.54 mm	0.1 in	0.76 lb	344.73 g	Hand Held Split Sides	PCB Supports	UL94 HB	Box
Serpac 194,BK	9.5 "	6.34 "	161.04 mm 241.3 mm	60.2 in²	388 cm²	76.2 mm	3 in	Plastic ABS	IP40 NEMA 1	Black	2.54 mm	0.1 in	0.76 lb	344.73 g	Hand Held Split Sides	PCB Supports	UL94 HB	Box
Serpac 194,AL	9.5 "	6.34 "	161.04 mm 241.3 mm	60.2 in²	388 cm²	76.2 mm	3 in	Plastic ABS	IP40 NEMA 1	Almond	2.54 mm	0.1 in	0.76 lb	344.73 g	Hand Held Split Sides	PCB Supports	UL94 HB	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Split Sides 9.500" L x 6.340" W (241.30mm x 161.04mm) X 3.000" (76.20mm)
