SCP7RTJ5HEL1RLQF6E
ActiveSamsung Semiconductor, Inc.

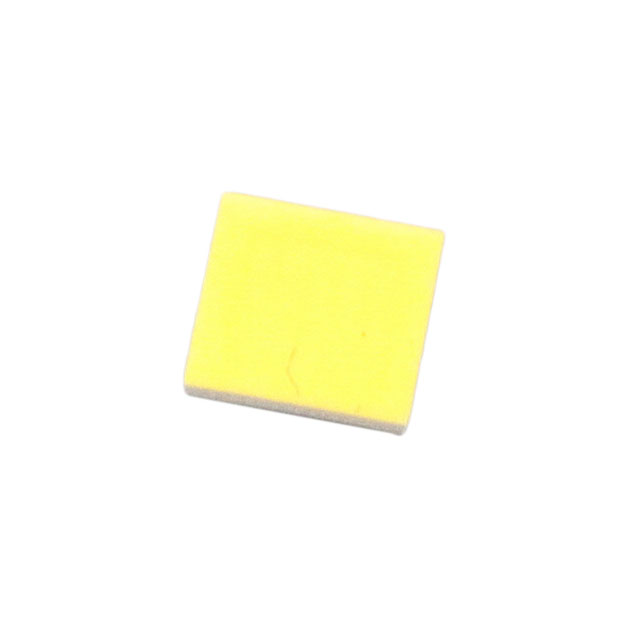

LED LH231B COOL WHITE 5000K SMD
Deep-Dive with AI
Search across all available documentation for this part.
SCP7RTJ5HEL1RLQF6E
ActiveSamsung Semiconductor, Inc.
LED LH231B COOL WHITE 5000K SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SCP7RTJ5HEL1RLQF6E |
|---|---|
| CCT (K) | 5000 K |
| CCT (K) | 5-Step MacAdam Ellipse |
| Color | Cool, White |
| CRI (Color Rendering Index) | 70 |
| Current - Max [Max] | 2 A |
| Flux @ 85°C, Current - Test | 340 lm |
| Flux @ 85°C, Current - Test [Max] | 370 lm |
| Flux @ 85°C, Current - Test [Min] | 310 lm |
| Height - Seated (Max) [Max] | 0.019 in |
| Height - Seated (Max) [Max] | 0.48 mm |
| Mounting Type | Surface Mount |
| Package / Case | 1111 (2828 Metric) |
| Size / Dimension [x] | 0.11 in |
| Size / Dimension [x] | 2.8 mm |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.23 | |
| 10 | $ 0.78 | |||
| 100 | $ 0.57 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.43 | |||
| Digi-Reel® | 1 | $ 1.23 | ||
| 10 | $ 0.78 | |||
| 100 | $ 0.57 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.43 | |||
| Tape & Reel (TR) | 2000 | $ 0.33 | ||
Description
General part information
SCP7RTJ5 Series
LED Lighting LH231B White, Cool 5000K 5-Step MacAdam Ellipse 2.9V 700mA 120° 1111 (2828 Metric)
Documents
Technical documentation and resources
No documents available
