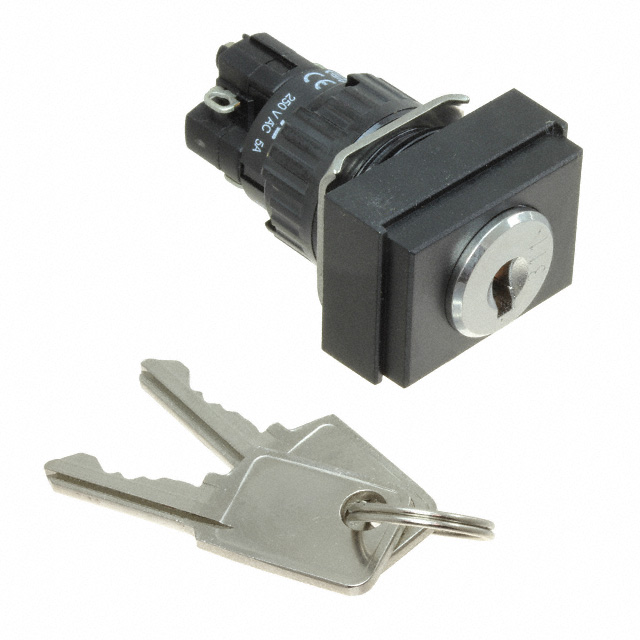

51-295.025D

Active

EAO

SWITCH KEYLOCK 2POS DPST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLOCK 2POS DPST 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	51-295.025D

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	DPST-NO/NC
Contact Timing	Not Specified
Current Rating (Amps)	5 A
Depth Behind Flange	26.5 mm
Features	IP65
Key Removable Positions	1 only
Number of Positions	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Off, Off-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	250 V

Part	Voltage Rating - AC	Circuit	Key Removable Positions	Number of Positions	Depth Behind Flange	Features	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Angle of Throw	Contact Timing	Termination Style	Termination Style	Termination Style	Panel Cutout Dimensions [diameter]	Switch Function	Actuator Type
EAO 51-295.025D	250 V	DPST-NO/NC	1 only	2	26.5 mm	IP65	5 A	55 °C	-25 °C	90 °	Not Specified	0.11 in	Quick Connect Solder	2.8 mm	16 mm	Off-On On-Off	Flat Key

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position DPST-NO/NC 5A (AC) 250 VAC DC Panel Mount
