341-030-500-102

Active

EDAC Inc.

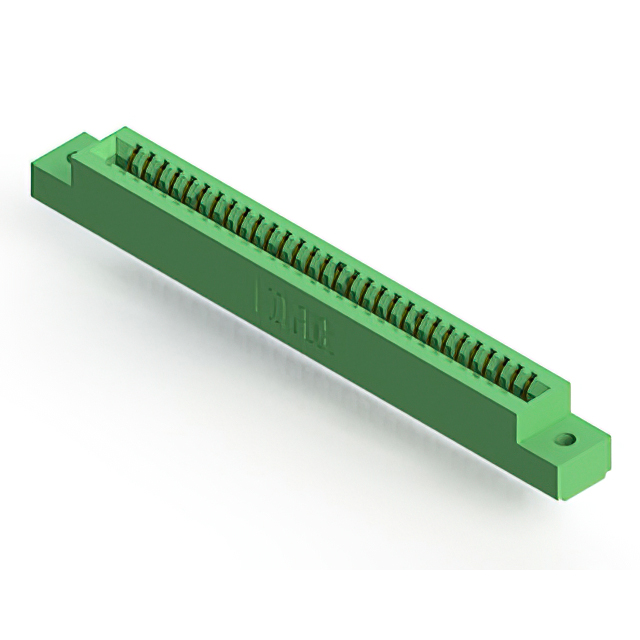

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 30 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

341-030-500-102

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 30 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-030-500-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	30
Number of Positions/Bay/Row [custom]	30
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1

341-030 Series

Part	Termination	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Contact Type	Color	Card Type	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Termination Rows	Read Out	Mounting Type	Gender	Contact Finish	Number of Positions	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 341-030-522-107	Solder	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	1	10 Áin	0.25 Ám	Flush Mount M3 Threaded Insert Top Opening	Semi Bellows	Green	Non Specified - Single Edge	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	30	1	Single	Through Hole	Female	Gold	30
EDAC Inc. 341-030-555-208	Solder Eyelet(s)	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	2	10 Áin	0.25 Ám	4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	Green	Non Specified - Dual Edge	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	15	2	Dual	Board Edge Straddle Mount	Female	Gold	30	Card Extender
EDAC Inc. 341-030-500-203	Solder Eyelet(s)	Diallyl Phthalate (DAP)	-40 °C	105 ░C	Copper Alloy	2	10 Áin	0.25 Ám	Floating Bobbin Flush Mount	Semi Bellows	Green	Non Specified - Dual Edge	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	15	2	Dual	Through Hole	Female	Gold	30		0.116 in	2.95 mm
EDAC Inc. 341-030-522-101	Solder	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	1	10 Áin	0.25 Ám		Semi Bellows	Green	Non Specified - Single Edge	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	30	1	Single	Through Hole	Female	Gold	30
EDAC Inc. 341-030-524-208	Solder	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	2	10 Áin	0.25 Ám	4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	Green	Non Specified - Dual Edge	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	15	2	Dual	Through Hole	Female	Gold	30
EDAC Inc. 341-030-521-208	Solder	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	2	10 Áin	0.25 Ám	4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	Green	Non Specified - Dual Edge	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	15	2	Dual	Through Hole	Female	Gold	30
EDAC Inc. 341-030-522-103	Solder	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	1	10 Áin	0.25 Ám	Floating Bobbin Flush Mount	Semi Bellows	Green	Non Specified - Single Edge	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	30	1	Single	Through Hole	Female	Gold	30		0.116 in	2.95 mm
EDAC Inc. 341-030-524-103	Solder	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	1	10 Áin	0.25 Ám	Floating Bobbin Flush Mount	Semi Bellows	Green	Non Specified - Single Edge	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	30	1	Single	Through Hole	Female	Gold	30		0.116 in	2.95 mm
EDAC Inc. 341-030-560-202	Solder	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	2	10 Áin	0.25 Ám	Flush Mount Top Opening Unthreaded	Semi Bellows	Green	Non Specified - Dual Edge	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	15	2	Dual	Board Edge Straddle Mount	Female	Gold	30	Card Extender	0.128 "	3.25 mm
EDAC Inc. 341-030-500-102	Solder Eyelet(s)	Diallyl Phthalate (DAP)	-40 °C	105 ░C	Copper Alloy	1	10 Áin	0.25 Ám	Flush Mount Top Opening Unthreaded	Semi Bellows	Green	Non Specified - Single Edge	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	30	1	Single	Through Hole	Female	Gold	30		0.128 "	3.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 20.43
Newark	Each	1	$ 22.82
		100	$ 18.49
		250	$ 15.76
		500	$ 15.19
		1000	$ 13.28

Description

General part information

341-030 Series

30 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
