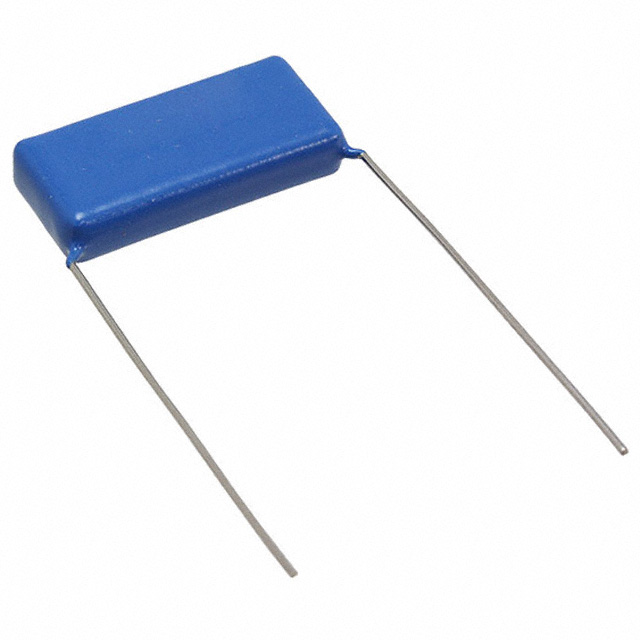

30HV14B103KC

Active

KEMET

CAP CER 10000PF 3KV X7R RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 10000PF 3KV X7R RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	30HV14B103KC

Applications	Downhole
Capacitance	10000 pF
Features	High Voltage, High Temperature
Height - Seated (Max) [Max] [z]	12.7 mm
Height - Seated (Max) [Max] [z]	0.5 in
Lead Spacing	0.5 in
Lead Spacing	12.7 mm
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	15.75 mm
Size / Dimension [x]	0.62 in
Size / Dimension [y]	7.62 mm
Size / Dimension [y]	0.3 "
Temperature Coefficient	X7R
Tolerance	10 %

Part	Capacitance	Lead Style	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Tolerance	Lead Spacing	Lead Spacing	Temperature Coefficient	Package / Case	Mounting Type	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
KEMET 30HV14B103KN	10000 pF	Straight	-55 °C	200 °C	12.7 mm	0.5 in	Downhole	10 %	0.5 in	12.7 mm	X7R	Radial	Through Hole	High Temperature High Voltage	7.62 mm	15.75 mm	0.62 in	0.3 "
KEMET 30HV14B103KC	10000 pF	Straight	-55 °C	200 °C	12.7 mm	0.5 in	Downhole	10 %	0.5 in	12.7 mm	X7R	Radial	Through Hole	High Temperature High Voltage	7.62 mm	15.75 mm	0.62 in	0.3 "
KEMET 30HV14B123KN	0.012 µF	Straight	-55 °C	200 °C	12.7 mm	0.5 in	Downhole	10 %	0.5 in	12.7 mm	X7R	Radial	Through Hole	High Temperature High Voltage	7.62 mm	15.75 mm	0.62 in	0.3 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10000 pF ±10% 3000V (3kV) Ceramic Capacitor X7R Radial
