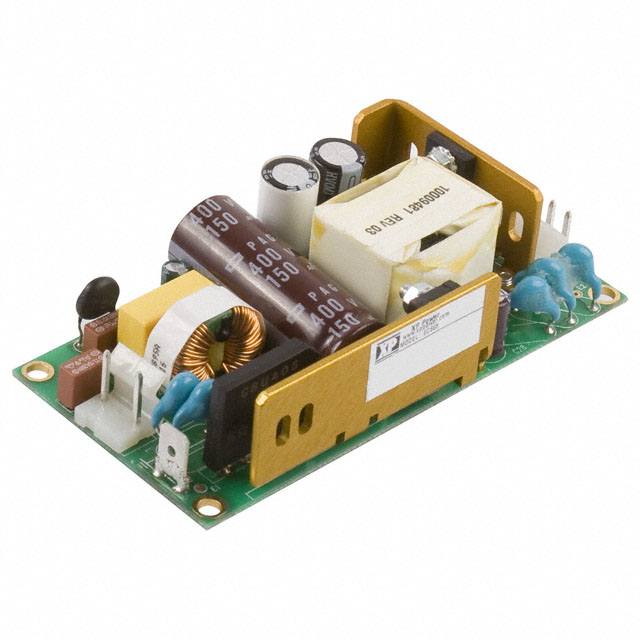

ECS65US28

Active

XP POWER

AC/DC CONVERTER 28V 65W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 28V 65W

Technical Specifications

Parameters and characteristics for this part

Specification	ECS65US28

Applications	ITE (Commercial), Medical
Approval Agency	CB
Current - Output 1	2.3 A
Efficiency	90 %
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	26.7 mm
Size / Dimension [z]	1.05 in
Standard Number	62368-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	28 V

Part	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features	Mounting Type	Current - Output 1	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage - Isolation	Voltage - Output 1	Standard Number	Number of Outputs
XP POWER ECS65US15	90 %	101.6 mm	50.8 mm	26.7 mm	101.6 mm	50.8 mm	1.05 in	Adjustable Output DC Input Capable Universal Input	Chassis Mount	4.3 A	ITE (Commercial) Medical	264 VAC	80 VAC	Open Frame	-20 °C	70 °C	CB	4000 V	15 V	62368-1	1
XP POWER ECS65US28	90 %	101.6 mm	50.8 mm	26.7 mm	101.6 mm	50.8 mm	1.05 in	Adjustable Output DC Input Capable Universal Input	Chassis Mount	2.3 A	ITE (Commercial) Medical	264 VAC	80 VAC	Open Frame	-20 °C	70 °C	CB	4000 V	28 V	62368-1	1
XP POWER ECS65US48	90 %	101.6 mm	50.8 mm	26.7 mm	101.6 mm	50.8 mm	1.05 in	Adjustable Output DC Input Capable Universal Input	Chassis Mount	1.4 A	ITE (Commercial) Medical	264 VAC	80 VAC	Open Frame	-20 °C	70 °C	CB	4000 V	48 V	62368-1	1
