AOZ8001AJI-05

Obsolete

Alpha & Omega Semiconductor Inc.

TVS DIODE 5VWM 16VC SOT143-4

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

TVS DIODE 5VWM 16VC SOT143-4

Technical Specifications

Parameters and characteristics for this part

Specification	AOZ8001AJI-05

Applications	Ethernet
Capacitance @ Frequency	1.8 pF
Current - Peak Pulse (10/1000µs)	18 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	TO-253-4, TO-253AA
Power Line Protection	True

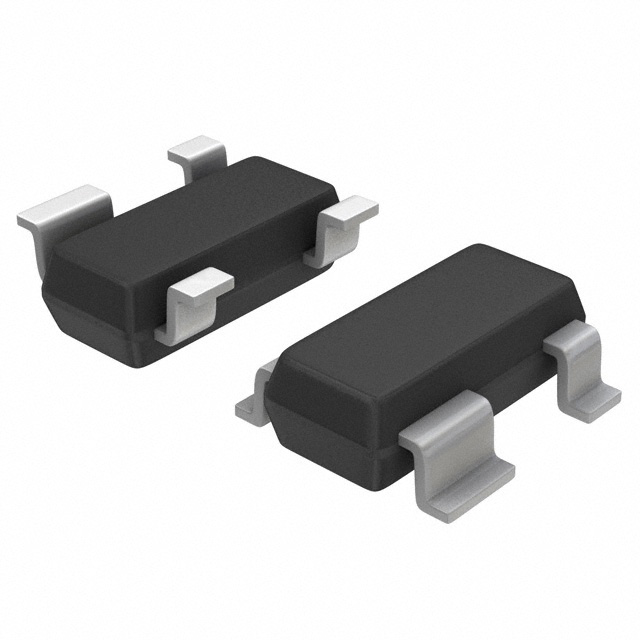

Supplier Device Package	SOT-143-4
Type	Steering
Unidirectional Channels	2
Voltage - Breakdown (Min)	8.5 V
Voltage - Clamping (Max) @ Ipp [Max]	16 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Supplier Device Package	Applications	Unidirectional Channels	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ)	Package / Case	Power Line Protection	Mounting Type	Voltage - Breakdown (Min)	Current - Peak Pulse (10/1000µs)	Type
Alpha & Omega Semiconductor Inc. AOZ8001AJI-05	SOT-143-4	Ethernet	2	16 V	-40 °C	125 ¯C	1.8 pF	5 V	TO-253-4 TO-253AA		Surface Mount	8.5 V	18 A	Steering
