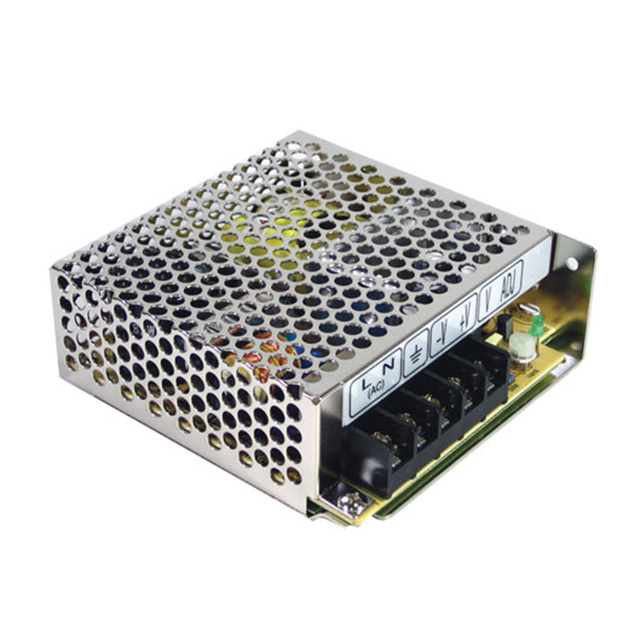

RQ-50B

Active

MEAN WELL USA Inc.

AC/DC CNVRTR 5V 12V -5V -12V 46W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CNVRTR 5V 12V -5V -12V 46W

Technical Specifications

Parameters and characteristics for this part

Specification	RQ-50B

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	5 A
Current - Output 2	1 A
Current - Output 3	500 mA
Current - Output 4	500 mA
Efficiency	74 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	46 W
Size / Dimension [x]	99 mm
Size / Dimension [x]	3.9 "
Size / Dimension [y]	3.82 in
Size / Dimension [y]	97 mm
Size / Dimension [z]	36 mm
Size / Dimension [z]	1.42 in
Type	Enclosed
Voltage - Input [Max]	264 VAC, 373 VDC
Voltage - Input [Min]	88 VAC, 125 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	-5 V

Part	Voltage - Output 2	Current - Output 2	Current - Output 3	Mounting Type	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Isolation	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Features	Voltage - Output 3	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 4	Power (Watts)	Number of Outputs	Applications	Voltage - Output 1	Voltage - Output 4
MEAN WELL USA Inc. RQ-50B	12 V	1 A	500 mA	Chassis Mount	5 A	-25 °C	70 °C	Enclosed	3000 V	CB CE cURus TUV	88 VAC 125 VDC	264 VAC 373 VDC	74 %	Adjustable Output Universal Input	-5 V	99 mm	3.82 in	36 mm	3.9 "	97 mm	1.42 in	500 mA	46 W	4	ITE (Commercial)	5 V
MEAN WELL USA Inc. RQ-50D	12 V	900 mA	900 mA	Chassis Mount	3 A	-25 °C	70 °C	Enclosed	3000 V	CB CE cURus TUV	88 VAC 125 VDC	264 VAC 373 VDC	79 %	Adjustable Output Universal Input	24 V	99 mm	3.82 in	36 mm	3.9 "	97 mm	1.42 in	500 mA	63 W	4	ITE (Commercial)	5 V
MEAN WELL USA Inc. RQ-50C	15 V	1 A	500 mA	Chassis Mount	5 A	-25 °C	70 °C	Enclosed	3000 V	CB CE cURus TUV	88 VAC 125 VDC	264 VAC 373 VDC	75 %	Adjustable Output Universal Input	-5 V	99 mm	3.82 in	36 mm	3.9 "	97 mm	1.42 in	500 mA	50 W	4	ITE (Commercial)	5 V	-15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 4 Output 5V 12V -5V -12V 88 ~ 264 VAC, 125 ~ 373 VDC Input
