SCC-K-06-SGM-SMT-B-T/R
ActiveAdam Tech

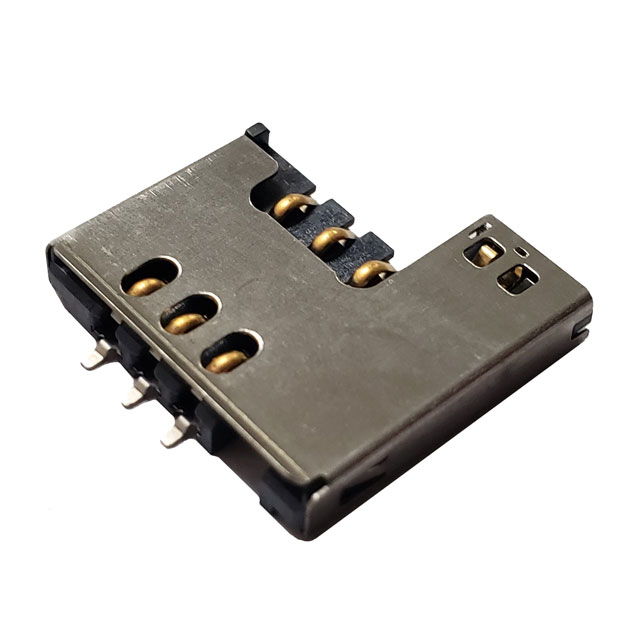

SIM CARD 6POS CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
SCC-K-06-SGM-SMT-B-T/R
ActiveAdam Tech
SIM CARD 6POS CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SCC-K-06-SGM-SMT-B-T/R |
|---|---|
| Card Type | SIM Card |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Switch |
| Height Above Board | 0.118 in |
| Height Above Board | 3 mm |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 8 (6 + 2) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.66 | |
| Digi-Reel® | 1 | $ 2.66 | ||
| Tape & Reel (TR) | 2100 | $ 1.14 | ||
Description
General part information
SCC-K-06 Series
8 (6 + 2) Position Card Connector SIM Card Surface Mount, Right Angle Gold
Documents
Technical documentation and resources
