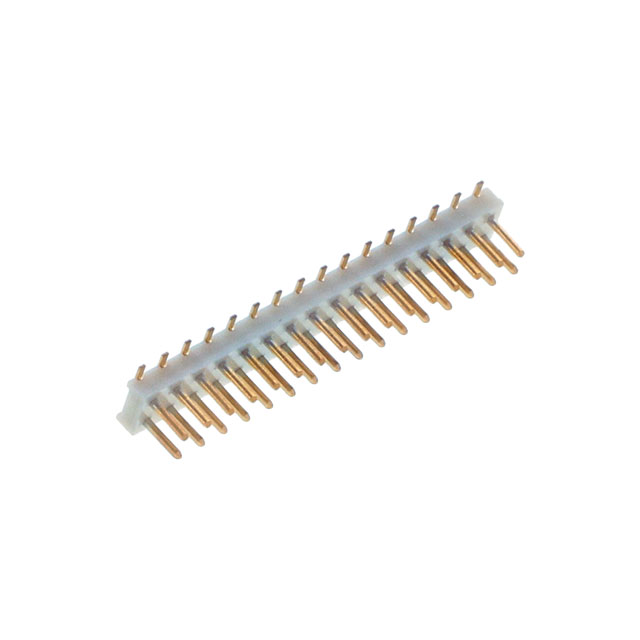

A3-32PA-2SV(71)

Active

Hirose Electric USA, Inc.

2.0MM PITCH DOUBLE ROW MINIATURE CONNECTORS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

2.0MM PITCH DOUBLE ROW MINIATURE CONNECTORS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	A3-32PA-2SV(71)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Brown
Insulation Height	1.8 mm
Insulation Height	0.071 "
Insulation Material	Polyphenylene Sulfide (PPS)
Mated Stacking Heights	8.8 mm, 6 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	200 V

Part	Material Flammability Rating	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Style	Connector Type	Contact Shape	Contact Material	Number of Positions Loaded	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mated Stacking Heights	Insulation Color	Voltage Rating	Insulation Material	Mounting Type	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Type	Number of Rows	Shrouding	Contact Finish - Post
Hirose Electric USA, Inc. A3-32PA-2SV(71)	UL94 V-0	Gold	0.079 in	2 mm	Board to Board Cable	Header	Square	Brass	All	Push-Pull	0.079 in	2 mm	Flash	0.203 Ám	8 Áin	6 mm 8.8 mm	Brown	200 V	Polyphenylene Sulfide (PPS)	Surface Mount	0.138 in	3.5 mm	1.8 mm	0.071 "	85 °C	-55 °C	Solder	Male Pin	2	Unshrouded	Gold
Hirose Electric USA, Inc. A3-32PA-2SV	UL94 V-0	Gold	0.079 in	2 mm	Board to Board Cable	Header	Square	Brass	All	Push-Pull	0.079 in	2 mm				6 mm 8.8 mm	Brown	200 V	Polyphenylene Sulfide (PPS)	Surface Mount	0.138 in	3.5 mm	1.8 mm	0.071 "	85 °C	-55 °C	Solder	Male Pin	2	Unshrouded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 32 position 0.079" (2.00mm)
