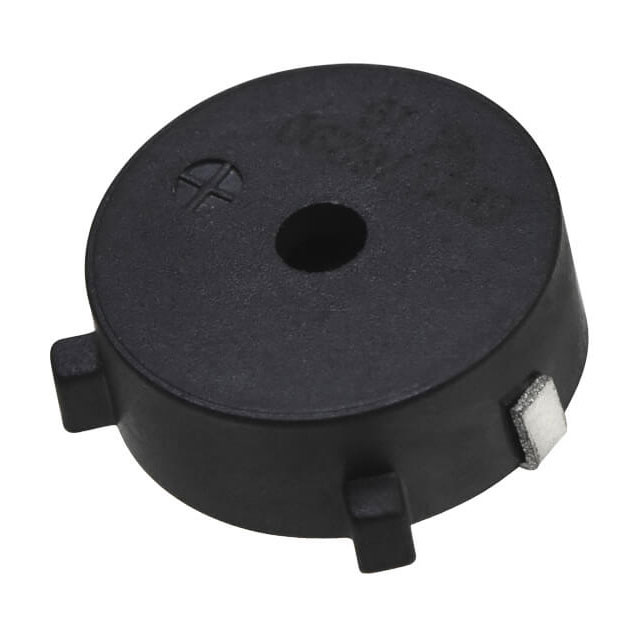

CPT-1762-90-SMT-TR
ActiveCUI Devices
BUZZER PIEZO 12V 17.00MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CPT-1762-90-SMT-TR
ActiveCUI Devices
BUZZER PIEZO 12V 17.00MM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CPT-1762-90-SMT-TR |
|---|---|
| Current - Supply | 12 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 4 kHz |
| Height - Seated (Max) [Max] | 0.264 " |
| Height - Seated (Max) [Max] | 6.7 mm |
| Input Type | Peak-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Top |
| Size / Dimension [diameter] | 0.669 in |
| Size / Dimension [diameter] | 17 mm |
| Sound Pressure Level (SPL) | 90 dB |
| Technology | Piezo |
| Termination | Solder Pads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.08 | |
| 10 | $ 1.73 | |||
| 25 | $ 1.60 | |||
| 50 | $ 1.50 | |||
| 100 | $ 1.41 | |||
| Digi-Reel® | 1 | $ 2.08 | ||
| 10 | $ 1.73 | |||
| 25 | $ 1.60 | |||
| 50 | $ 1.50 | |||
| 100 | $ 1.41 | |||
| Tape & Reel (TR) | 400 | $ 1.31 | ||
| 800 | $ 1.21 | |||
| 1200 | $ 1.16 | |||
Description
General part information
CPT-1762 Series
Buzzers Transducer, Externally Driven Piezo 12 V 12mA 4kHz 90dB @ 12V, 10cm Surface Mount Solder Pads
