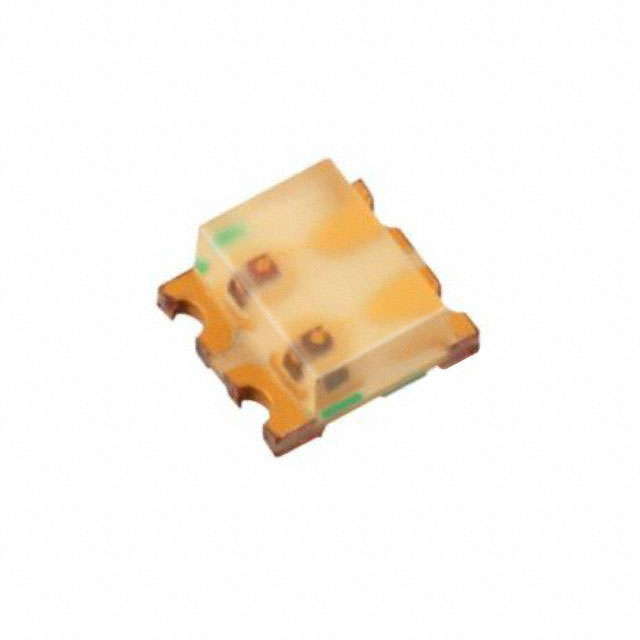

FRYPY1211C-0005-TR
ActiveStanley Electric Co
LED RED/YLW-GRN DIFFUSED SMD
Deep-Dive with AI
Search across all available documentation for this part.
FRYPY1211C-0005-TR
ActiveStanley Electric Co
LED RED/YLW-GRN DIFFUSED SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FRYPY1211C-0005-TR |
|---|---|
| Color | Red, Yellow-Green |
| Configuration | Independent |
| Current - Test | 5 mA, 5 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Color | White |
| Lens Size [x] | 1.5 mm |
| Lens Size [y] | 1.2 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 12 mcd |
| Millicandela Rating [custom] | 30 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0606, 1616 Metric |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 1.5 mm |
| Viewing Angle | 115°, 140° Red, 115°, 140° Yellow-Green |
| Voltage - Forward (Vf) (Typ) | 1.95 V, 1.85 V |
| Wavelength - Dominant | 626 nm, 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.53 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.20 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| 2000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.53 | ||
| 10 | $ 0.31 | |||
| 100 | $ 0.20 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| 2000 | $ 0.13 | |||
| Tape & Reel (TR) | 4000 | $ 0.12 | ||
| 8000 | $ 0.11 | |||
| 12000 | $ 0.11 | |||
| 28000 | $ 0.10 | |||
| 100000 | $ 0.09 | |||
Description
General part information
FRYPY1211 Series
Red, Yellow-Green 626nm Red, 570nm Yellow-Green LED Indication - Discrete 1.85V Red, 1.95V Yellow-Green 0606 (1616 Metric)
Documents
Technical documentation and resources
No documents available
