BDS2A10010RK

Active

TE Connectivity Passive Product

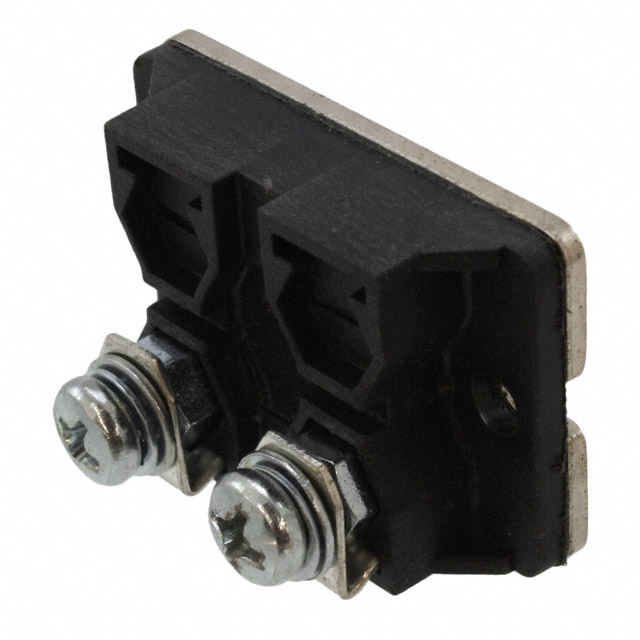

RES CHAS MNT 10 OHM 10% 100W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BDS2A10010RK

Active

TE Connectivity Passive Product

RES CHAS MNT 10 OHM 10% 100W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BDS2A10010RK

Coating, Housing Type	Epoxy Coated
Composition	Thick Film
Features	RF, High Frequency
Height - Seated (Max) [Max] [z]	21 mm
Height - Seated (Max) [Max] [z]	0.827 "
Lead Style	M4 Threaded
Mounting Feature	Flanges
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-227-2
Power (Watts)	100 W
Resistance	10 Ohms
Size / Dimension [x]	1.488 in, 37.8 mm
Size / Dimension [y]	25.4 mm
Temperature Coefficient	150 ppm/°C
Tolerance	10 %

BDS2A Series

Part	Composition	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Temperature Coefficient	Coating, Housing Type	Power (Watts)	Lead Style	Mounting Feature	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
TE Connectivity Passive Product BDS2A1002R2K	Thick Film	10 %	21 mm	0.827 "	-55 °C	125 °C	High Frequency RF	150 ppm/°C	Epoxy Coated	100 W	M4 Threaded	Flanges	1.488 in 37.8 mm	25.4 mm	SOT-227-2	2.2 Ohms
TE Connectivity Passive Product BDS2A1003R3K	Thick Film	10 %	21 mm	0.827 "	-55 °C	125 °C	High Frequency RF	150 ppm/°C	Epoxy Coated	100 W	M4 Threaded	Flanges	1.488 in 37.8 mm	25.4 mm	SOT-227-2	3.3 Ohms
TE Connectivity Passive Product BDS2A250150RK	Thick Film	10 %	36 mm	1.417 in	-55 °C	125 °C	High Frequency RF	150 ppm/°C	Epoxy Coated	250 W	M4 Threaded	Flanges	2.638 in	2.372 in		150 Ohms	67 mm	60.25 mm
TE Connectivity Passive Product BDS2A1004R7K	Thick Film	10 %	21 mm	0.827 "	-55 °C	125 °C	High Frequency RF	150 ppm/°C	Epoxy Coated	100 W	M4 Threaded	Flanges	1.488 in 37.8 mm	25.4 mm	SOT-227-2	4.7 Ohms
TE Connectivity Passive Product BDS2A2502K0J	Thick Film	5 %	36 mm	1.417 in	-55 °C	125 °C	High Frequency RF	150 ppm/°C	Epoxy Coated	250 W	M4 Threaded	Flanges	2.638 in	2.372 in		2 kOhms	67 mm	60.25 mm
TE Connectivity Passive Product BDS2A100100KJ	Thick Film	5 %	21 mm	0.827 "	-55 °C	125 °C	High Frequency RF	150 ppm/°C	Epoxy Coated	100 W	M4 Threaded	Flanges	38 mm	25.5 mm	SOT-227-2	100 kOhms			1.496 "	1.004 in
TE Connectivity Passive Product BDS2A10010RK	Thick Film	10 %	21 mm	0.827 "	-55 °C	125 °C	High Frequency RF	150 ppm/°C	Epoxy Coated	100 W	M4 Threaded	Flanges	1.488 in 37.8 mm	25.4 mm	SOT-227-2	10 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 53.61

Description

General part information

BDS2A Series

10 Ohms ±10% 100W Thick Film Chassis Mount Resistor
