MPL-AY4020-6R8

Active

MONOLITHIC POWER SYSTEMS (MPS)

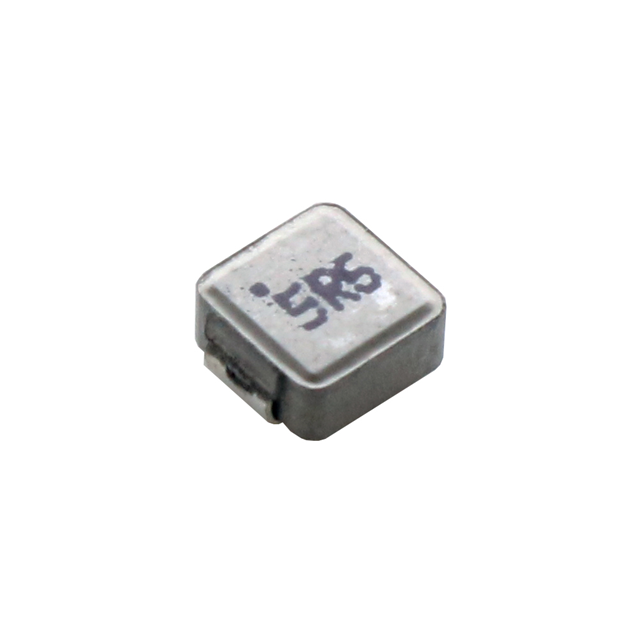

POWER INDUCTOR (SMD), 6.8 ΜH, 2.2 A, SHIELDED, 2.4 A, MPL-AY SERIES

Deep-Dive with AI

Search across all available documentation for this part.

MPL-AY4020-6R8

Active

MONOLITHIC POWER SYSTEMS (MPS)

POWER INDUCTOR (SMD), 6.8 ΜH, 2.2 A, SHIELDED, 2.4 A, MPL-AY SERIES

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPL-AY4020-6R8

Current - Saturation (Isat)	2.4 A
Current Rating (Amps)	2.2 A
DC Resistance (DCR)	129 mOhm
Height - Seated (Max) [Max] [z]	2 mm
Height - Seated (Max) [Max] [z]	0.079 in
Inductance	6.8 µH
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Shielding	Unshielded
Size / Dimension [x]	0.175 in
Size / Dimension [x]	4.45 mm
Size / Dimension [y]	4.1 mm
Size / Dimension [y]	0.161 in
Type	Molded

MPL-AY4020 Series

Part	Package / Case	DC Resistance (DCR)	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)	Inductance Frequency - Test	Current Rating (Amps)	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Inductance
MONOLITHIC POWER SYSTEMS (MPS) MPL-AY4020-5R6	Nonstandard	97 mOhm	Molded	2 mm	0.079 in	2.6 A	100 kHz	2.45 A	Surface Mount	0.175 in	4.45 mm	4.1 mm	0.161 in	Unshielded	-40 °C	155 °C	5.6 µH
MONOLITHIC POWER SYSTEMS (MPS) MPL-AY4020-8R2	Nonstandard	136 mOhm	Molded	2 mm	0.079 in	2.1 A	100 kHz	2.1 A	Surface Mount	0.175 in	4.45 mm	4.1 mm	0.161 in	Unshielded	-40 °C	155 °C	8.2 µH
MONOLITHIC POWER SYSTEMS (MPS) MPL-AY4020-6R8	Nonstandard	129 mOhm	Molded	2 mm	0.079 in	2.4 A	100 kHz	2.2 A	Surface Mount	0.175 in	4.45 mm	4.1 mm	0.161 in	Unshielded	-40 °C	155 °C	6.8 µH
MONOLITHIC POWER SYSTEMS (MPS) MPL-AY4020-100	Nonstandard	163 mOhm	Molded	2 mm	0.079 in	2 A	100 kHz	1.9 A	Surface Mount	0.175 in	4.45 mm	4.1 mm	0.161 in	Unshielded	-40 °C	155 °C	10 µH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.31
	Digi-Reel®	1	$ 1.31
	Tape & Reel (TR)	3000	$ 0.61
Newark	Each (Supplied on Cut Tape)	1	$ 1.50
		10	$ 1.45
		25	$ 1.42
		50	$ 1.38
		100	$ 1.35
		250	$ 1.24
		500	$ 1.14
		1000	$ 1.06

Description

General part information

MPL-AY4020 Series

MPL-AY moulded inductor series offers low DCR/ACR inductors with high current capabilities. Applications include battery-powered devices, portable devices, embedded computing, high-current SMPS, high-frequency SMPS, POL converters and FPGA.
