7010.6340.13
ActiveSCHURTER Inc.

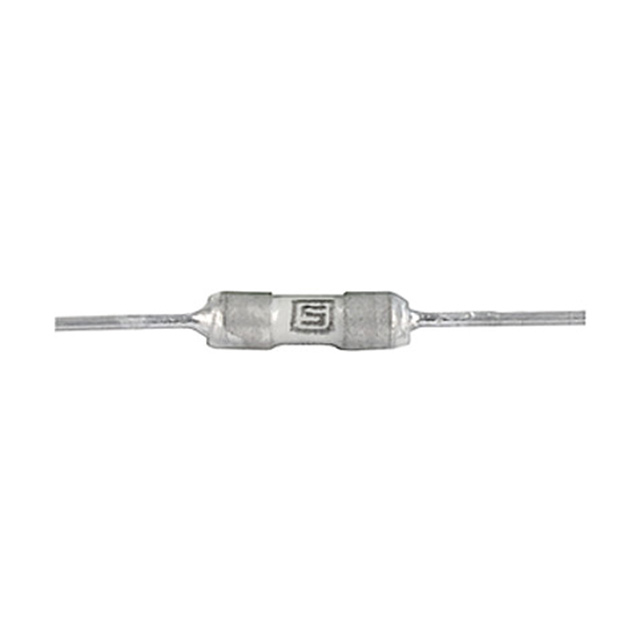

FUSE BRD MT 500MA 125VAC/VDC AXL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7010.6340.13
ActiveSCHURTER Inc.
FUSE BRD MT 500MA 125VAC/VDC AXL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7010.6340.13 |
|---|---|
| Breaking Capacity @ Rated Voltage | 300 A |
| Current Rating (Amps) | 0.5 A |
| Fuse Type | Board Mount |
| Melting I˛t | 0.1 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Cartridge, Non-Standard (Axial) |
| Response Time | Fast Blow |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.52 | |
| 50 | $ 2.40 | |||
| 100 | $ 2.12 | |||
| 500 | $ 1.39 | |||
Description
General part information
7010.6340 Series
500 mA 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Cartridge, Non-Standard (Axial)
