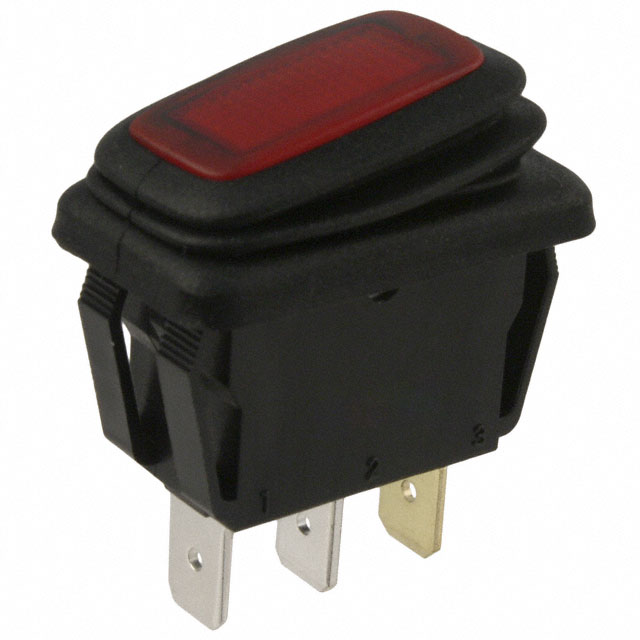

GRB238B801BR1

Obsolete

CW Industries

SWITCH ROCKER SPST 25A 14V

Search across all available documentation for this part.

Obsolete

CW Industries

SWITCH ROCKER SPST 25A 14V

Technical Specifications

Parameters and characteristics for this part

Specification	GRB238B801BR1

Actuator Marking	No Marking
Actuator Type	Flat - Illuminated
Circuit	SPST
Color - Actuator/Cap	Red
Current Rating (Amps)	25 A
Illumination Type, Color	Red, LED
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	27.6 mm
Panel Cutout Dimensions [y]	13.8 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	14 V

Part	Switch Function	Actuator Marking	Voltage Rating - DC	Circuit	Mechanical Life	Ingress Protection	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Current Rating (Amps)	Termination Style	Mounting Type	Illumination Type, Color	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Illumination Voltage (Nominal)
CW Industries GRB238B801BR1	On-Off	No Marking	14 V	SPST	100000 Cycles	IP65 - Dust Tight Water Resistant	Flat - Illuminated	-25 °C	85 °C	Red	25 A	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	LED Red	13.8 mm	27.6 mm
CW Industries GRB238B801BRRL1Z	On-Off	No Marking	12 V	SPST	100000 Cycles	IP65 - Dust Tight Water Resistant	Flat - Illuminated	-25 °C	85 °C	Red	16 A	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	LED Red	13.8 mm	27.6 mm	cULus ENEC	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPST 25A (DC) Panel Mount, Snap-In
