89023.35.01

Active

Prysmian Group

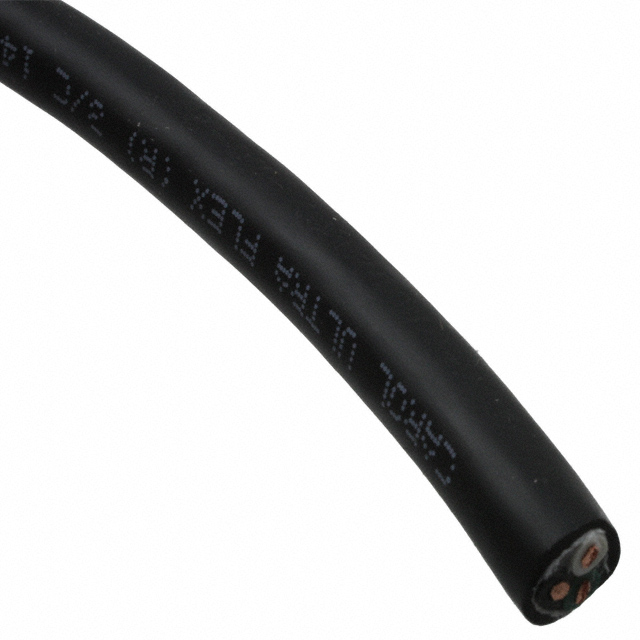

CABLE 3COND 14AWG BLACK

Deep-Dive with AI

Search across all available documentation for this part.

89023.35.01

Active

Prysmian Group

CABLE 3COND 14AWG BLACK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	89023.35.01

Cable Type	Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare
Conductor Strand [custom]	41
Conductor Strand [custom]	30 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	9.45 mm
Jacket (Insulation) Diameter [diameter]	0.372 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Black
Length	3000 "
Length	76.2 m
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-50 °C
Spool Size	76.2 m
Spool Size	250 ft
Usage	Cord and Cordset
Voltage	300 V
Wire Gauge	13.5 AWG

89023 Series

Part	Length	Length	Voltage	Conductor Material	Jacket (Insulation) Material	Wire Gauge	Cable Type	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Jacket Color	Length [x]	Spool Size	Spool Size
Prysmian Group 89023.35.02	3000 "	76.2 m	300 V	Copper Bare	Thermoplastic Elastomer (TPE)	13.5 AWG	Multi-Conductor	Oil Resistant	9.45 mm	0.372 in	Thermoplastic Elastomer (TPE)	3	41	30 AWG	0.762 mm	0.03 in	-50 °C	105 ░C
Prysmian Group 89023.35.05	3000 "	15.24 m 76.2 m	300 V	Copper Bare	Thermoplastic Elastomer (TPE)	13.5 AWG	Multi-Conductor	Oil Resistant	9.45 mm	0.372 in	Thermoplastic Elastomer (TPE)	3	41	30 AWG	0.762 mm	0.03 in	-50 °C	105 ░C	Cord and Cordset	Yellow	50 ft
Prysmian Group 89023.35.01	3000 "	76.2 m	300 V	Copper Bare	Thermoplastic Elastomer (TPE)	13.5 AWG	Multi-Conductor	Oil Resistant	9.45 mm	0.372 in	Thermoplastic Elastomer (TPE)	3	41	30 AWG	0.762 mm	0.03 in	-50 °C	105 ░C	Cord and Cordset	Black		76.2 m	250 ft
Prysmian Group 89023.XX.05			300 V	Copper Annealed Bare	Thermoplastic Elastomer (TPE)	13.5 AWG	Multi-Conductor	Oil Resistant	9.45 mm	0.372 in	Thermoplastic Elastomer (TPE)	3	41	30 AWG	0.762 mm	0.03 in	-50 °C	105 ░C		Yellow
Prysmian Group 89023.XX.02			300 V	Copper Annealed Bare	Thermoplastic Elastomer (TPE)	13.5 AWG	Multi-Conductor	Oil Resistant	9.45 mm	0.372 in	Thermoplastic Elastomer (TPE)	3	41	30 AWG	0.762 mm	0.03 in	-50 °C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 1.26
		500	$ 1.20
		750	$ 1.17
		1250	$ 1.12
		1750	$ 1.10
		2500	$ 1.07
		6250	$ 1.00

Description

General part information

89023 Series

3 Conductor Multi-Conductor Cable Black 14 AWG 250.0' (76.2m)
