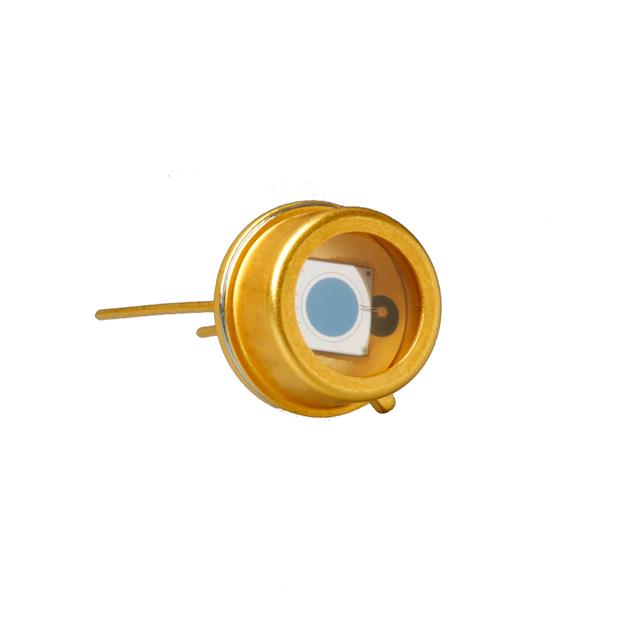

OSD5-E

Active

OSI Optoelectronics, Inc.

SENSOR PHOTODIODE 550NM 2.5 TO5

Search across all available documentation for this part.

Active

OSI Optoelectronics, Inc.

SENSOR PHOTODIODE 550NM 2.5 TO5

Technical Specifications

Parameters and characteristics for this part

Specification	OSD5-E

Active Area	5 mm²
Color - Enhanced	Blue
Current - Dark (Typ)	500 pA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	Lens Top Metal Can, TO-5 Variant, 2 Leads
Spectral Range [Max]	850 nm
Spectral Range [Min]	350 nm
Wavelength	550 nm

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Spectral Range [Min]	Spectral Range [Max]	Active Area	Mounting Type	Wavelength	Current - Dark (Typ)	Color - Enhanced
OSI Optoelectronics, Inc. OSD5-E	-25 °C	85 °C	2 Leads Lens Top Metal Can TO-5 Variant	350 nm	850 nm	5 mm²	Through Hole	550 nm	500 pA	Blue

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 550nm TO-5 Variant, 2 Leads, Lens Top Metal Can
