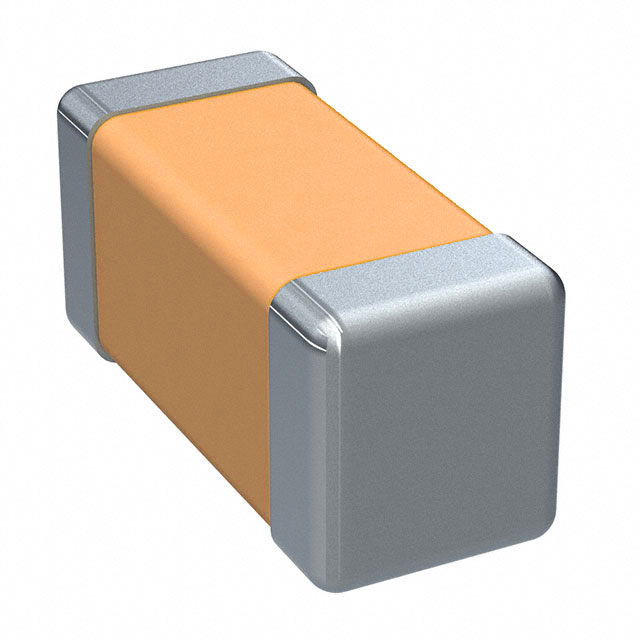

C0402H152J5GACTU

Active

KEMET

CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 50V, 5% +TOL, 5% -TOL, C0G, 30PPM/CEL TC, 0.0015UF, SURFACE MOUNT, 0402, CHIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet C0402H152J5GACTU

C0402H152J5GACTU

Active

KEMET

CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 50V, 5% +TOL, 5% -TOL, C0G, 30PPM/CEL TC, 0.0015UF, SURFACE MOUNT, 0402, CHIP

Deep-Dive with AI

DocumentsDatasheet C0402H152J5GACTU

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C0402H152J5GACTU

Applications	Downhole
Capacitance	1500 pF
Features	High Temperature, Low ESL
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	0402 (1005 Metric)
Size / Dimension [x]	1 mm
Size / Dimension [x]	0.039 in
Size / Dimension [y]	0.02 in
Size / Dimension [y]	0.5 mm
Temperature Coefficient	NP0, C0G
Thickness (Max) [Max]	0.022 in
Thickness (Max) [Max]	0.55 mm
Tolerance	5 %
Voltage - Rated	50 VDC

C0402H Series

Part	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Temperature Coefficient	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Mounting Type	Tolerance	Features	Thickness (Max) [Max]	Thickness (Max) [Max]
KEMET C0402H102J5GAFT1K0	Downhole	-55 °C	200 °C	50 VDC	C0G NP0	0.001 µF	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	MLCC Surface Mount	5 %	High Temperature Low ESL	0.022 in	0.55 mm
KEMET C0402H101J5GAFT1K0	Downhole	-55 °C	200 °C	50 VDC	C0G NP0	100 pF	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	MLCC Surface Mount	5 %	High Temperature Low ESL	0.022 in	0.55 mm
KEMET C0402H471J5GACT500	Downhole	-55 °C	200 °C	50 VDC	C0G NP0	470 pF	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	MLCC Surface Mount	5 %	High Temperature Low ESL	0.022 in	0.55 mm
KEMET C0402H152J5GACTU	Downhole	-55 °C	200 °C	50 VDC	C0G NP0	1500 pF	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	MLCC Surface Mount	5 %	High Temperature Low ESL	0.022 in	0.55 mm
KEMET C0402H152J3GACT500	Downhole	-55 °C	200 °C	25 VDC	C0G NP0	1500 pF	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	MLCC Surface Mount	5 %	High Temperature Low ESL	0.022 in	0.55 mm
KEMET C0402H561J1GACTU	Downhole	-55 °C	200 °C	100 V	C0G NP0	560 pF	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	MLCC Surface Mount	5 %	High Temperature Low ESL	0.022 in	0.55 mm
KEMET C0402H152J3GACTU	Downhole	-55 °C	200 °C	25 VDC	C0G NP0	1500 pF	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	MLCC Surface Mount	5 %	High Temperature Low ESL	0.022 in	0.55 mm
KEMET C0402H102J1GAFT1K0	Downhole	-55 °C	200 °C	100 V	C0G NP0	0.001 µF	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	MLCC Surface Mount	5 %	High Temperature Low ESL	0.022 in	0.55 mm
KEMET C0402H102J3GACT500	Downhole	-55 °C	200 °C	25 VDC	C0G NP0	0.001 µF	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	MLCC Surface Mount	5 %	High Temperature Low ESL	0.022 in	0.55 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.38
		20000	$ 0.35

Description

General part information

C0402H Series

1500 pF ±5% 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric)
