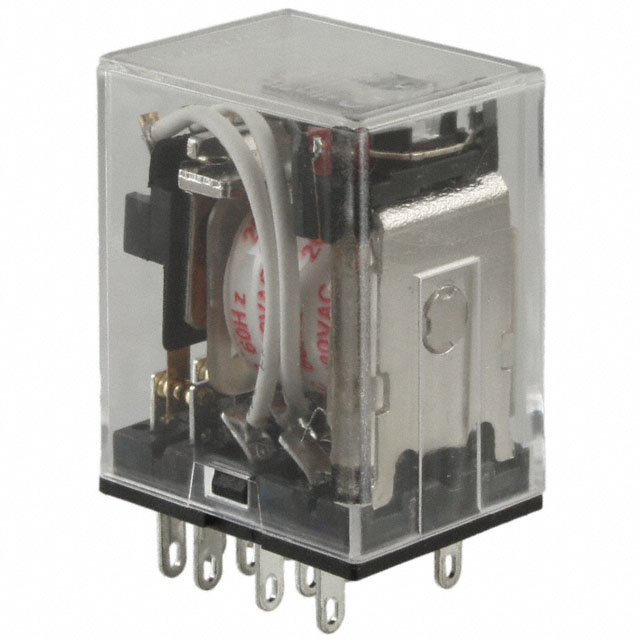

SZR-MY4-N1-AC220V

Obsolete

Honeywell Sensing and Productivity Solutions

RELAY GEN PURPOSE 4PDT 3A 220V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SZR-MY4-N1-AC220V

Obsolete

Honeywell Sensing and Productivity Solutions

RELAY GEN PURPOSE 4PDT 3A 220V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SZR-MY4-N1-AC220V

Approval Agency	CSA, UR, CE
Coil Current	9.3 mA
Coil Resistance	12.95 kOhms
Coil Type	Non Latching
Coil Voltage	220 VAC/DC
Contact Form	4PDT (4 Form C)
Contact Material	Silver (Ag)
Contact Rating (Current)	3 A
Features	Lighted Indicator
Load - Max Switching	750 VA, 375 W
Mounting Type	Socketable
Must Operate Voltage	165 VAC
Must Release Voltage	66 VAC
Operate Time	20 ms
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 125 VDC
Termination Style	Plug In

SZR-MY4 Series

Part	Must Operate Voltage	Features	Coil Current	Load - Max Switching	Coil Type	Operate Time	Release Time	Termination Style	Termination Style	Termination Style	Switching Voltage	Coil Voltage	Coil Resistance	Contact Rating (Current)	Contact Form	Contact Material	Approval Agency	Relay Type	Mounting Type	Must Release Voltage
Honeywell Sensing and Productivity Solutions SZR-MY4-N1AC200V	150 VAC	Lighted Indicator	5.5 mA	375 W 750 VA	Non Latching	20 ms	20 ms	2.6 mm	0.102 "	Plug In Quick Connect	125 VDC 250 VAC	200 VAC	36.364 kOhms	3 A	4PDT (4 Form C)	Silver (Ag)	CE CSA UR	General Purpose	Socketable	60 VAC/DC
Honeywell Sensing and Productivity Solutions SZR-MY4-N1-AC220V	165 VAC	Lighted Indicator	9.3 mA	375 W 750 VA	Non Latching	20 ms	20 ms			Plug In	125 VDC 250 VAC	220 VAC/DC	12.95 kOhms	3 A	4PDT (4 Form C)	Silver (Ag)	CE CSA UR	General Purpose	Socketable	66 VAC
Honeywell Sensing and Productivity Solutions SZR-MY4-N1-AC110/120	90 VAC	Lighted Indicator	27 mA		Non Latching	20 ms	20 ms			Plug In	125 VDC 250 VAC	120 VAC	4.43 kOhms	3 A	4PDT (4 Form C)	Silver Cadmium Oxide (AgCdO)		General Purpose	Socketable	36 VAC
Honeywell Sensing and Productivity Solutions SZR-MY4-D1-DC110V	82.5 VDC	Diode	10 mA	375 W 750 VA	Non Latching	20 ms	20 ms			Plug In	125 VDC 250 VAC	110 VDC	11000 Ohms	3 A	4PDT (4 Form C)	Silver Cadmium Oxide (AgCdO)	CE CSA UR	General Purpose	Socketable	11 VDC
Honeywell Sensing and Productivity Solutions SZR-MY4-N1 DC48V	36 VDC	Lighted Indicator	18.5 mA	375 W 750 VA	Non Latching	20 ms	20 ms	2.6 mm	0.102 "	Plug In Quick Connect	125 VDC 250 VAC	48 VDC	2.6 kOhms	3 A	4PDT (4 Form C)	Silver (Ag)	CE CSA UR	General Purpose	Socketable	4.8 VDC
Honeywell Sensing and Productivity Solutions SZR-MY4-X1DC12V	9 VDC	Diode Lighted Indicator	75 mA	375 W 750 VA	Non Latching	20 ms	20 ms	2.6 mm	0.102 "	Plug In Quick Connect	125 VDC 250 VAC	12 VDC	160 Ohms	3 A	4PDT (4 Form C)	Silver (Ag)	CE CSA UR	General Purpose	Socketable	1.2 VDC
Honeywell Sensing and Productivity Solutions SZR-MY4-D1-DC24V	18 VDC	Diode	36.9 mA	375 W 750 VA	Non Latching	20 ms	20 ms			Plug In	125 VDC 250 VAC	24 VDC	650 Ohms	3 A	4PDT (4 Form C)	Silver (Ag)	CE CSA UR	General Purpose	Socketable	2.4 VDC
Honeywell Sensing and Productivity Solutions SZR-MY4-X1-DC24V	18 VDC	Diode Lighted Indicator	40.9 mA	375 W 750 VA	Non Latching	20 ms	20 ms			Plug In	125 VDC 250 VAC	24 VDC	650 Ohms	3 A	4PDT (4 Form C)	Silver (Ag)	CE CSA UR	General Purpose	Socketable	2.4 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SZR-MY4 Series

General Purpose Relay 4PDT (4 Form C) 220VAC Coil Socketable
