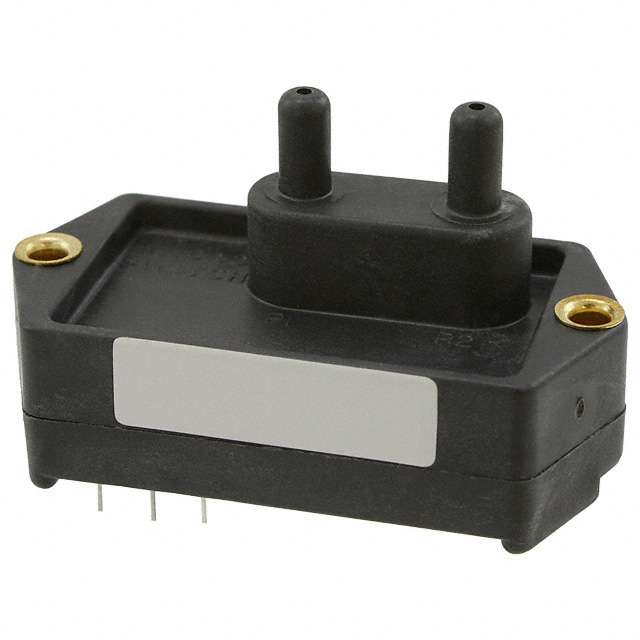

164PC01D76

Active

Honeywell Sensing and Productivity Solutions

SENSOR 0.18PSID 0.2" 7V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 0.18PSID 0.2" 7V

Technical Specifications

Parameters and characteristics for this part

Specification	164PC01D76

Accuracy	2 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	34.47 kPa
Maximum Pressure	5 PSI
Mounting Type	Through Hole
Operating Pressure	1.25 kPa
Operating Pressure	0.18 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output [Max]	7 V
Output [Min]	1 V
Output Type	Analog Voltage
Package / Case	3-SIP Module
Port Size	Dual, Tube, Male
Port Size	5 mm
Port Size	0.2 "
Port Style	Barbless
Pressure Type	Differential
Termination Style	PC Pin
Voltage - Supply [Max]	16 V
Voltage - Supply [Min]	6 V

Part	Output [Min]	Output [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Pressure Type	Mounting Type	Applications	Maximum Pressure	Maximum Pressure	Termination Style	Package / Case	Features	Operating Temperature [Max]	Operating Temperature [Min]	Port Size	Port Size	Port Size	Accuracy	Port Style	Operating Pressure	Operating Pressure	Output Type
Honeywell Sensing and Productivity Solutions 164PC01D76	1 V	7 V	16 V	6 V	Differential	Through Hole	Board Mount	34.47 kPa	5 PSI	PC Pin	3-SIP Module	Amplified Output Temperature Compensated	85 °C	-40 °C	Dual Male Tube	5 mm	0.2 "	2 %	Barbless	1.25 kPa	0.18 PSI	Analog Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 0.18PSI (1.25kPa) Differential Male - 0.2" (5mm) Tube, Dual 1 V ~ 7 V 3-SIP Module

Technical documentation and resources

No documents available
