76PSB08ST

Active

Grayhill Inc.

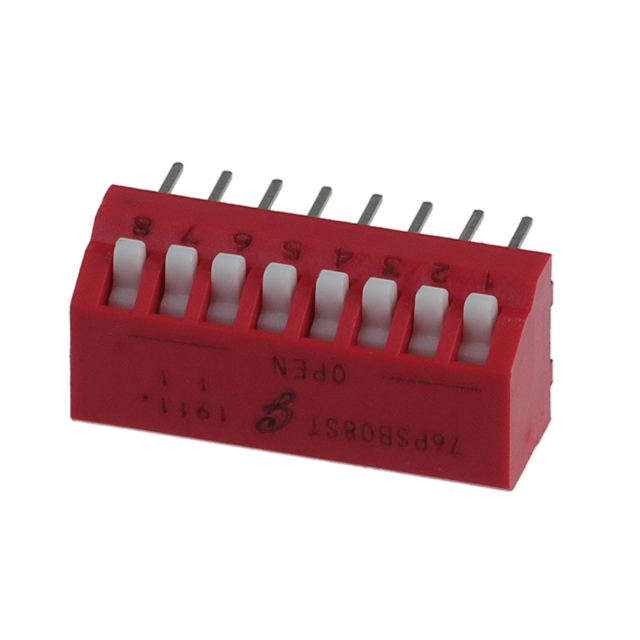

SWITCH PIANO DIP SPST 0.15A 30V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PIANO DIP SPST 0.15A 30V

Technical Specifications

Parameters and characteristics for this part

Part	Body Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Termination Style	Pitch [x]	Pitch	Pitch [x]	Electrical Life	Length	Length	Actuator Level	Number of Positions	Contact Material	Height Above Board	Height Above Board	Actuator Type	Circuit	Mechanical Life	Contact Finish	Features	Length [x]	Length [x]
Grayhill Inc. 76PSB08T	Thermoplastic	Through Hole Right Angle	85 °C	-40 °C	30 VDC	PC Pin	0.1 in	Full	2.54 mm	2000 Steps	22.35 mm	0.88 in	Raised	8	Copper Alloy	7.65 mm	0.301 in	Piano	SPST	2000 Cycles	Gold
Grayhill Inc. 76PSB08ST	Thermoplastic	Through Hole Right Angle	85 °C	-40 °C	30 VDC	PC Pin	0.1 in	Full	2.54 mm	2000 Steps	22.35 mm	0.88 in	Raised	8	Copper Alloy	7.65 mm	0.301 in	Piano	SPST	2000 Cycles	Gold	Tape Seal
Grayhill Inc. 76PSB06ST	Thermoplastic	Through Hole Right Angle	85 °C	-40 °C	30 VDC	PC Pin	0.1 in	Full	2.54 mm	2000 Steps			Raised	6	Copper Alloy	7.65 mm	0.301 in	Piano	SPST	2000 Cycles	Gold	Tape Seal	17.27 mm	0.68 "
Grayhill Inc. 76PSB05ST	Thermoplastic	Through Hole Right Angle	85 °C	-40 °C	30 VDC	PC Pin	0.1 in	Full	2.54 mm	2000 Steps	14.73 mm	0.58 in	Raised		Copper Alloy	7.65 mm	0.301 in	Piano	SPST	2000 Cycles	Gold	Tape Seal
Grayhill Inc. 76PSB03T	Thermoplastic	Through Hole Right Angle	85 °C	-40 °C	30 VDC	PC Pin	0.1 in	Full	2.54 mm	2000 Steps	9.65 mm	0.38 in	Raised		Copper Alloy	7.65 mm	0.301 in	Piano	SPST	2000 Cycles	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 8 Position Through Hole, Right Angle Piano Actuator 150mA 30VDC
