C1300.21.01

Active

Prysmian Group

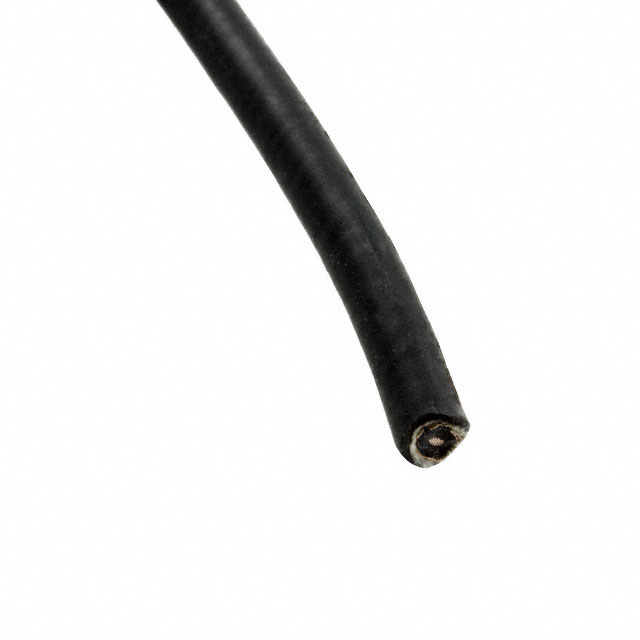

MIC CABLE 20AWG 300V BLACK

Search across all available documentation for this part.

Active

Prysmian Group

MIC CABLE 20AWG 300V BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	C1300.21.01

Cable Type	Microphone
Conductor Material	Copper, Annealed Tinned
Conductor Strand	34 AWG, 26
Jacket (Insulation) Diameter [diameter]	5.84 mm
Jacket (Insulation) Diameter [diameter]	0.23 in
Jacket (Insulation) Material	Rubber
Jacket (Insulation) Thickness	0.89 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Voltage	300 V
Wire Gauge	20 AWG

Part	Wire Gauge	Conductor Material	Jacket Color	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Voltage	Ratings	Length [x]	Length [x]
Prysmian Group C1300.21.01	20 AWG	Copper Annealed Tinned	Black	1000 ft	304.8 m	0.89 mm	0.035 in	Microphone	5.84 mm	0.23 in	26 34 AWG	-20 C	60 °C	Rubber	300 V	ASTM B-33
Prysmian Group C1300-100	20 AWG	Copper Annealed Tinned	Black			0.89 mm	0.035 in	Microphone	5.84 mm	0.23 in	26 34 AWG	-20 C	60 °C	Rubber	300 V	ASTM B-33	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 AWG Microphone Wire 26/34 Black 300V 1000.0' (304.8m)

Technical documentation and resources

No documents available
