PI74STX2G4245ZEEX

Obsolete

Diodes Inc

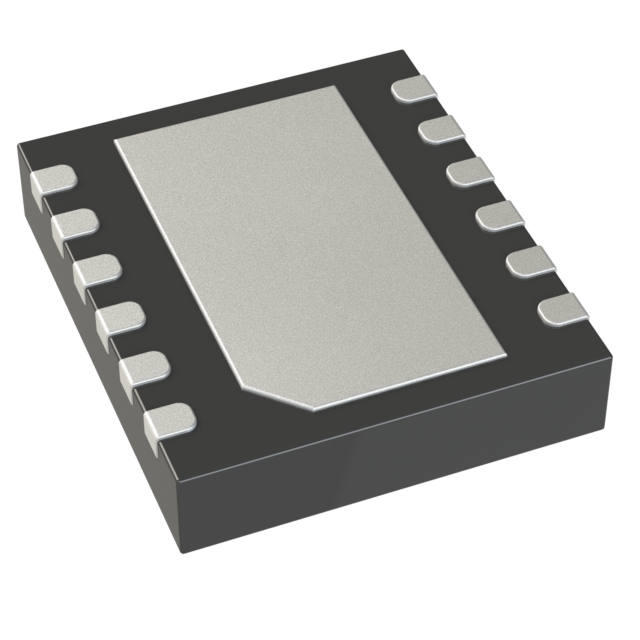

IC BUFFER NON-INVERT 5.5V 12TDFN

Search across all available documentation for this part.

Obsolete

Diodes Inc

IC BUFFER NON-INVERT 5.5V 12TDFN

Technical Specifications

Parameters and characteristics for this part

Specification	PI74STX2G4245ZEEX

Current - Output High, Low	12 mA
Current - Output High, Low	24 mA
Logic Type	Transceiver, Non-Inverting, Buffer
Mounting Type	Surface Mount
Number of Bits per Element	1
Number of Elements	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Push-Pull
Package / Case	12-WFDFN Exposed Pad
Supplier Device Package	12-TDFN
Supplier Device Package [x]	3.5
Supplier Device Package [y]	3

Part	Number of Bits per Element	Mounting Type	Logic Type	Output Type	Number of Elements	Package / Case	Current - Output High, Low	Current - Output High, Low	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Operating Temperature [Max]	Operating Temperature [Min]
Diodes Inc PI74STX2G4245ZEEX	1	Surface Mount	Buffer Non-Inverting Transceiver	Push-Pull	2	12-WFDFN Exposed Pad	12 mA	24 mA	12-TDFN	3	3.5	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buffer, Transceiver, Non-Inverting 2 Element 1 Bit per Element Push-Pull Output 12-TDFN (3.5x3)
