681M11W1103L001

Active

MH Connectors

CONN D-SUB PLUG 11P PNL MNT SLDR

Search across all available documentation for this part.

Active

MH Connectors

CONN D-SUB PLUG 11P PNL MNT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	681M11W1103L001

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	11
Number of Positions [custom]	10
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	11C1, 11W1
Shell Size, Connector Layout	2
Termination	Solder

Part	Material Flammability Rating	Color	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Number of Rows	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Contact Finish Thickness	Flange Feature	Contact Type	Connector Style	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Finish	Current Rating (Amps)	Contact Material	Shell Material, Finish	Termination	Features
MH Connectors 681M11W1103L001	UL94 V-0	Black	Male Pins Plug	Panel Mount Through Hole	-55 °C	125 °C	Polybutylene Terephthalate (PBT)	2	10	1	11	Flash	Housing/Shell (Unthreaded)	Signal and Power	Combo D-Sub	11C1 11W1	2	Gold	5 A 40 A	Copper Alloy	Nickel Plated Steel	Solder	Grounding Indents

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

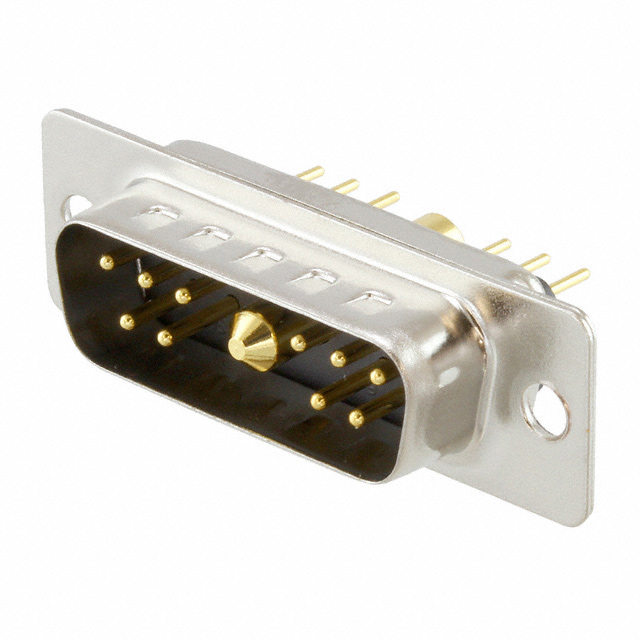

11 (10 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
