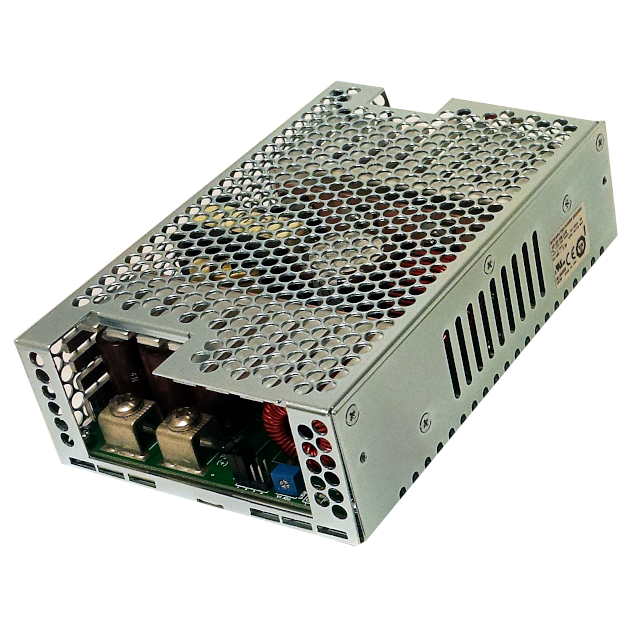

1011027CHCO

Active

Integrated Power Designs

AC/DC CONVERTER 3.3V 325W

Search across all available documentation for this part.

Active

Integrated Power Designs

AC/DC CONVERTER 3.3V 325W

Technical Specifications

Parameters and characteristics for this part

Specification	1011027CHCO

Applications	ITE (Commercial), Medical
Approval Agency	TUV, cURus, CE, UKCA
Current - Output 1	65 A
Efficiency	85 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	325 W
Size / Dimension [x]	6.2 in
Size / Dimension [x]	157.5 mm
Size / Dimension [y]	101.6 mm
Size / Dimension [y]	4 "
Size / Dimension [z]	1.75 "
Size / Dimension [z]	44.5 mm
Standard Number	60601-1, 62368-1
Type	Enclosed
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	3.3 V

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Output 1	Applications	Voltage - Output 1	Power (Watts)	Number of Outputs	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Features	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Standard Number
Integrated Power Designs 1011027CHCO	Chassis Mount	70 °C	0 °C	Enclosed	65 A	ITE (Commercial) Medical	3.3 V	325 W	1	85 %	6.2 in	101.6 mm	4 "	1.75 "	157.5 mm	44.5 mm	Adjustable Output Remote Sense Universal Input	240 VAC	100 VAC	CE cURus TUV UKCA	60601-1 62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 3.3V 100 ~ 240 VAC Input
